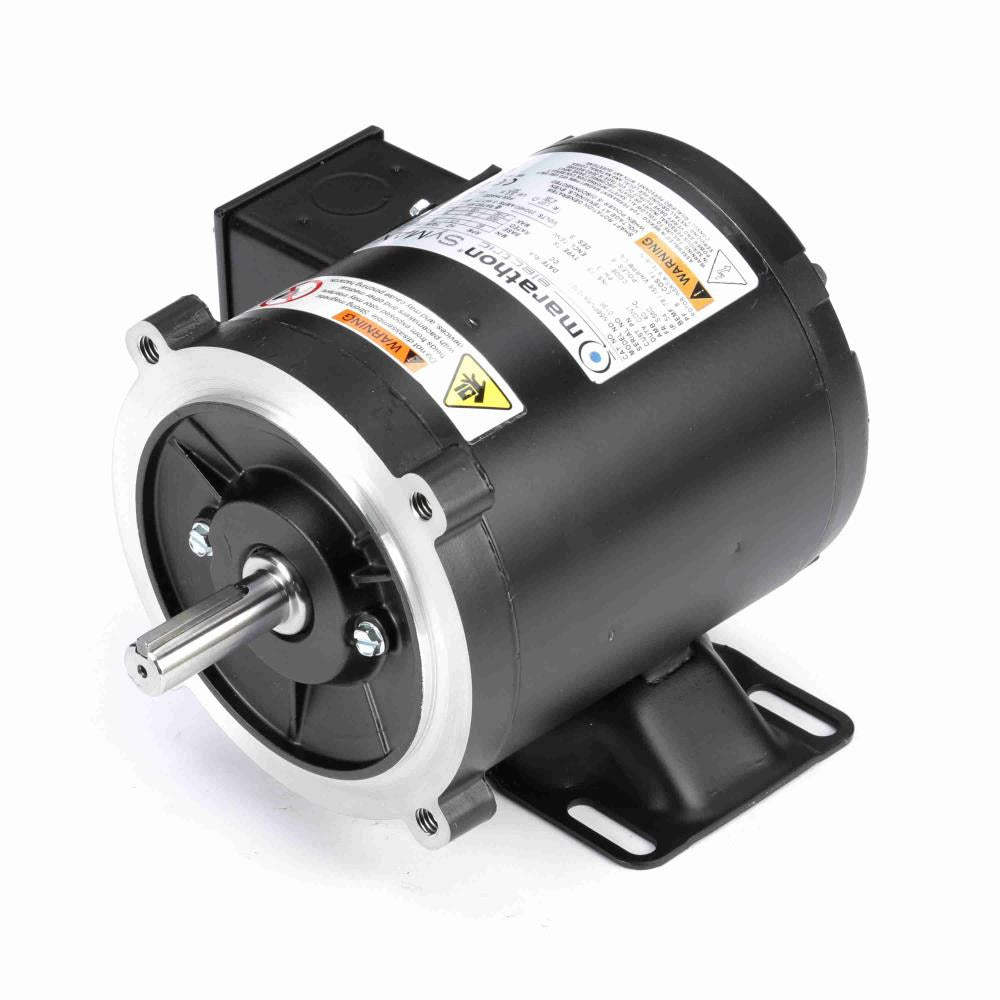

MSY003 Marathon Permanent Magnet AC Motor, 1 HP, 1800 RPM, 230/460 V, Three Phase, 56Z Frame, TENV
MSY003 Marathon Permanent Magnet AC Motor, 1 HP, 1800 RPM, 230/460 V, Three Phase, 56Z Frame, TENV
Regular price
$809.95 USD
Regular price
Sale price
$809.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MSY003 is a new-in-box Permanent Magnet AC Motor from Marathon. Manufacturer model SY003. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | SY003 |
|---|---|
| Catalog / Order Number | MSY003 |
| Product Type | Permanent Magnet AC Motor |
| Horsepower | 1 HP |
| Rated RPM | 1800 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 90 Hz |
| Electrical Type | AC Permament Magnet |
| Full Load Amps | 3.6/1.8 A |
| Service Factor | 1 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 56Z |
| Enclosure | TENV |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.625 in; Extension 2.06 in |
| Rotation | Reversible |
Specifications reflect the exact manufacturer source verified for this product.
