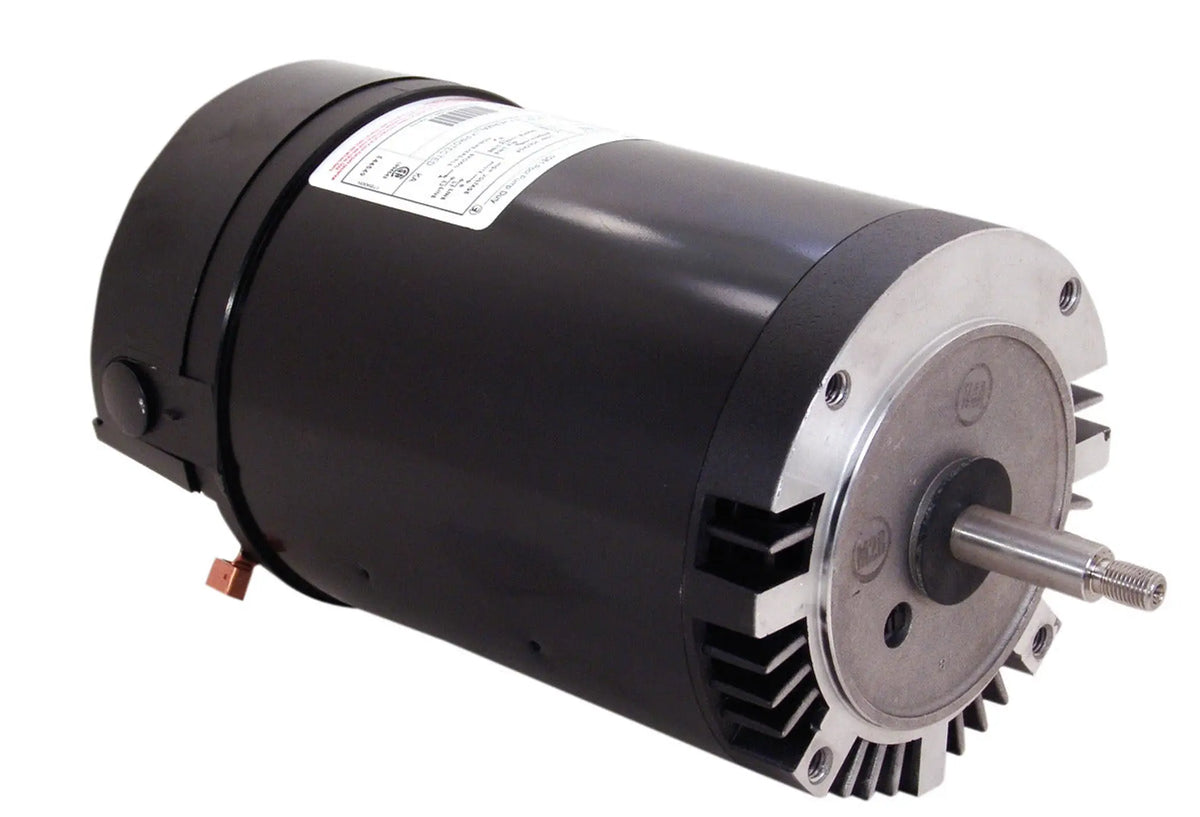

SN1152 Century Pool & Spa Motor, 1-1/2 HP, 3450 RPM, 208-230/115 V, Single Phase, 56J Frame, ODP
SN1152 Century Pool & Spa Motor, 1-1/2 HP, 3450 RPM, 208-230/115 V, Single Phase, 56J Frame, ODP
Regular price
$673.95 USD
Regular price
Sale price
$673.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SN1152 is a new-in-box Pool & Spa Motor from Century. Designed for Full-rated Hayward Northstar pool pumps; industry number SP1615Z1BNSC.
Specifications
| Manufacturer Part Number | SN1152 |
|---|---|
| Product Type | Pool & Spa Motor |
| Horsepower | 1-1/2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 208-230/115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor start-capacitor run |
| Full Load Amps | 11.0-10.2/20.4 A |
| Service Factor | 1.6 |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | ODP |
| Shaft Details | 56J threaded 303 stainless shaft; NEMA C-face; no base |
| Rotation | CCW pump end |
Specifications reflect the exact manufacturer source verified for this product.
