Century

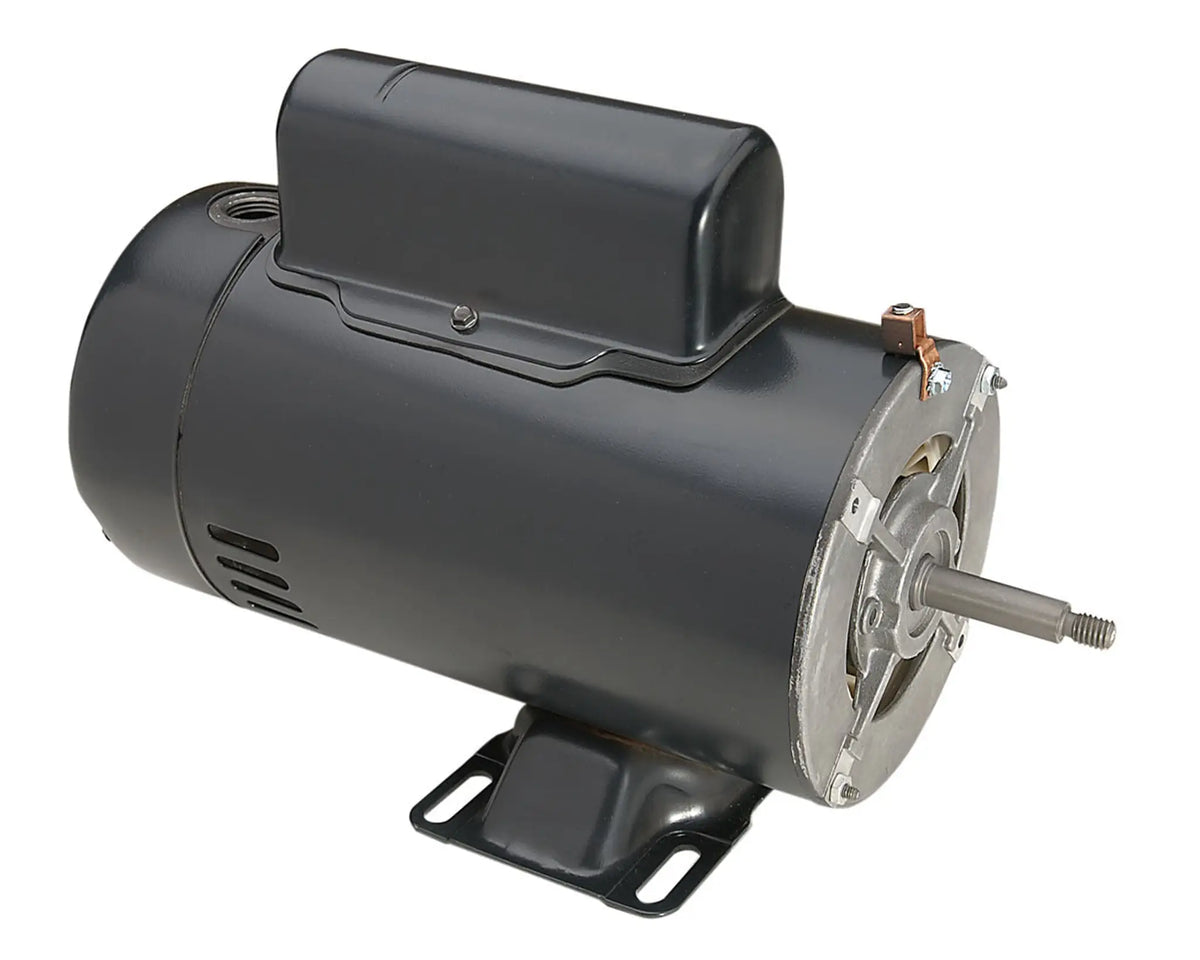

SDS1302 Century Pool & Spa Motor, 3.0-.38 HP, 3450/1725 RPM, 230 V, Single Phase, 56Z Frame, Open
SDS1302 Century Pool & Spa Motor, 3.0-.38 HP, 3450/1725 RPM, 230 V, Single Phase, 56Z Frame, Open
Regular price
$616.95 USD
Regular price
Sale price
$616.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SDS1302 is a new-in-box Pool & Spa Motor from Century. Designed for Dimension One, Hydroquip, GPM Industries, Hawkeye, Marquis, and Master Spas.
Specifications
| Manufacturer Part Number | SDS1302 |
|---|---|
| Product Type | Pool & Spa Motor |
| Horsepower | 3.0-.38 HP |
| Rated RPM | 3450/1725 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor start low speed / PSC high speed |
| Full Load Amps | 12.0/3.7 A |
| Service Factor | 1 |
| Insulation Class | F |
| Speed Count | 2 |
| Frame | 56Z |
| Enclosure | Open |
| Shaft Details | Rigid base; threaded shaft; four thru bolts on 5.146 in bolt circle |
| Rotation | CCW pump end |
Specifications reflect the exact manufacturer source verified for this product.
