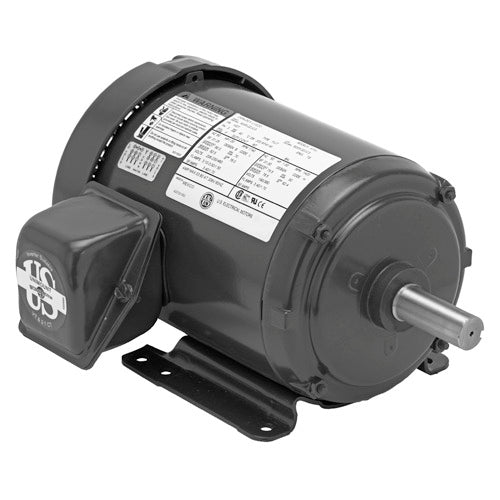

S5P1A US Motors / Nidec STEEL EDGE General Purpose Motor - 5 HP - 3515 RPM - 208-230/460 V - TEFC
S5P1A US Motors / Nidec STEEL EDGE General Purpose Motor - 5 HP - 3515 RPM - 208-230/460 V - TEFC
Regular price
$705.95 USD
Regular price
Sale price
$705.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
S5P1A is a new-in-box STEEL EDGE General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial equipment in wet, dirty, or dusty environments.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3515 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 13.6-12.1/6.1 A |
| Service Factor | 1.15 |
| Overload Protection | Not listed by manufacturer |
| Duty Rating | Not listed by manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 88.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 184T |
| Enclosure | TEFC |
| Mounting | Horizontal footed, F1 |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | DE 6206; ODE 6205 |
| Material | Rolled Steel |
| Length | 42 in |
| Width | 30 in |
| Height | 17 in |
| Ship Weight | 65 lb |
| Country of Origin | MEX |
