Marathon

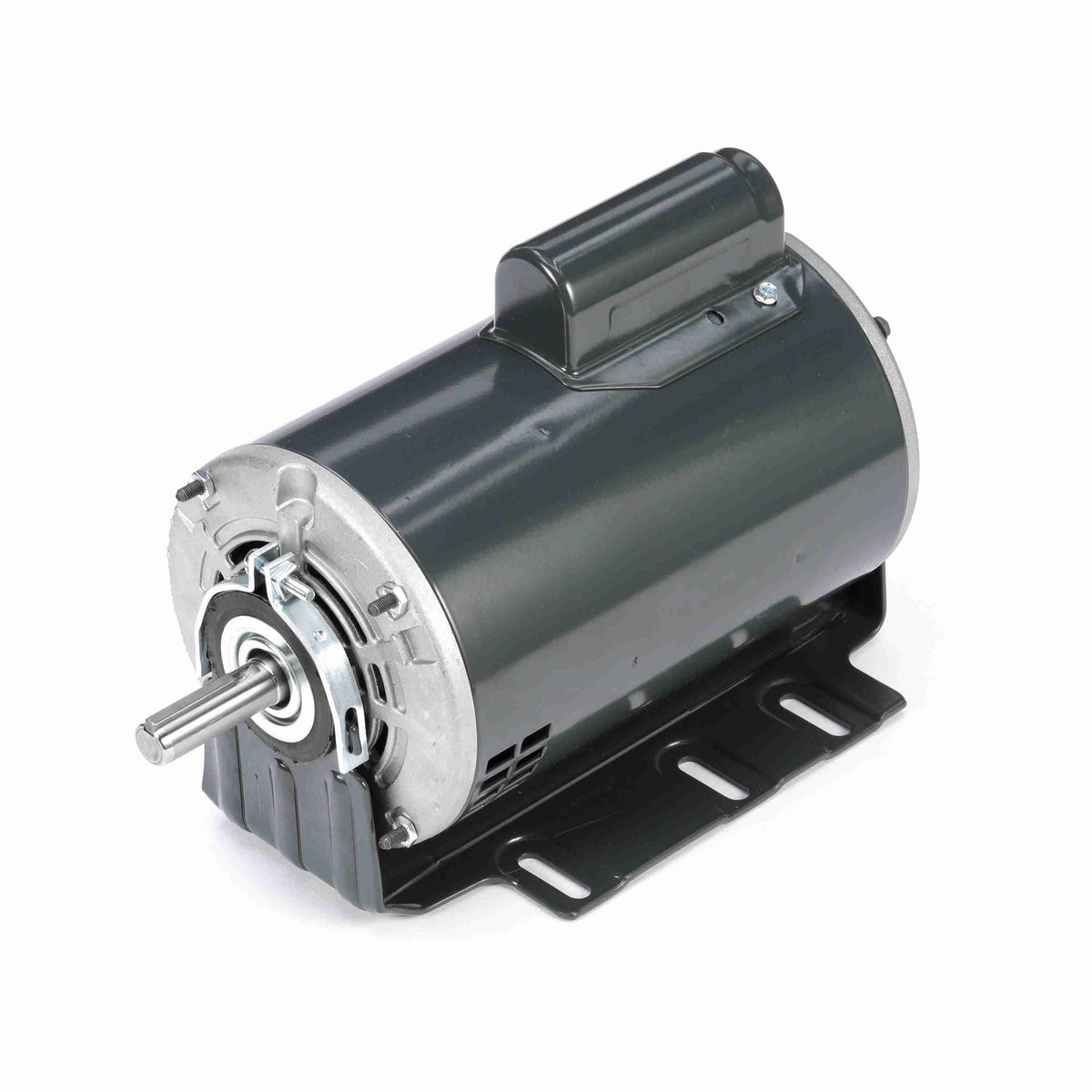

S115 Marathon General Purpose Motor - 3/4 HP - 1725 RPM - 115/230 V - ODP
S115 Marathon General Purpose Motor - 3/4 HP - 1725 RPM - 115/230 V - ODP
Regular price
$433.95 USD
Regular price
Sale price
$433.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
S115 is a new-in-box General Purpose Motor from Marathon. Designed for general purpose applications.
Identifiers
| Manufacturer Catalog Number | S115 |
|---|---|
| Manufacturer Model | 056C17D2061 |
| Stu's / Vendor SKU | MS115 |
Specifications
| Horsepower | 3/4 HP |
|---|---|
| Alternate Horsepower | Not available from manufacturer |
| Watts | Not available from manufacturer |
| kW | Not available from manufacturer |
| Nominal RPM | 1725 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Secondary Voltage | Not available from manufacturer |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Not available from manufacturer |
| Full-Load Amps | 10.4/5.2 A |
| Service Factor | Not available from manufacturer |
| Overload Protection | Automatic |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | Not available from manufacturer |
| Insulation Class | Not available from manufacturer |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Not available from manufacturer |
| Shaft Configuration | Not available from manufacturer |
| Shaft Details | Not available from manufacturer |
| Rotation | Not available from manufacturer |
| Bearings | Not available from manufacturer |
| Material | Not available from manufacturer |
| Motor Diameter | Not available from manufacturer |
| C Dimension | 11.97 in |
| Length | Not available from manufacturer |
| Width | Not available from manufacturer |
| Height | Not available from manufacturer |
| Ship Weight | 25 lb |
| Country of Origin | Not available from manufacturer |
Core listing values were checked against the exact Marathon manufacturer source used for this cleanup. Fields shown as unavailable were not published in the source used.
