US Motors / Nidec

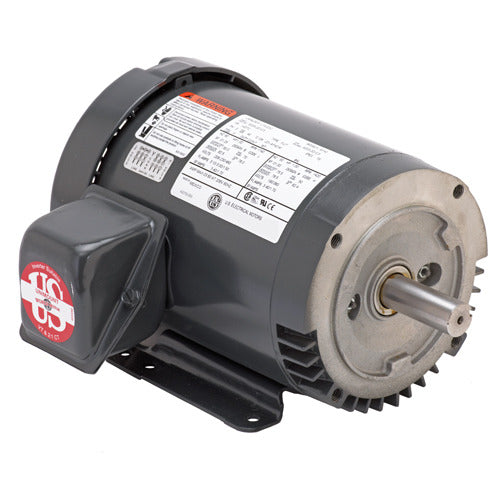

S10P1AC US Motors / Nidec General Purpose Motor - 10 HP - 3515 RPM - 208-230/460 V - TENV
S10P1AC US Motors / Nidec General Purpose Motor - 10 HP - 3515 RPM - 208-230/460 V - TENV
Regular price
$1,036.95 USD
Regular price
Sale price
$1,036.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
S10P1AC is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 10 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3515 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 26.5-23.5/11.7 A |
| Service Factor | 1.15 |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 90.2 % |
| Speed Count | 1 |
| Frame | 215TC |
| Enclosure | TENV |
| Mounting | Rigid Base |
| Shaft Details | Manufacturer shaft code TC |
| Rotation | Reversible |
| Bearings | 6208-2Z-J/C3 / 6205-2Z-J/C3 |
| Material | Rolled Steel |
| Ship Weight | 131 lb |
| Country of Origin | MEX |
