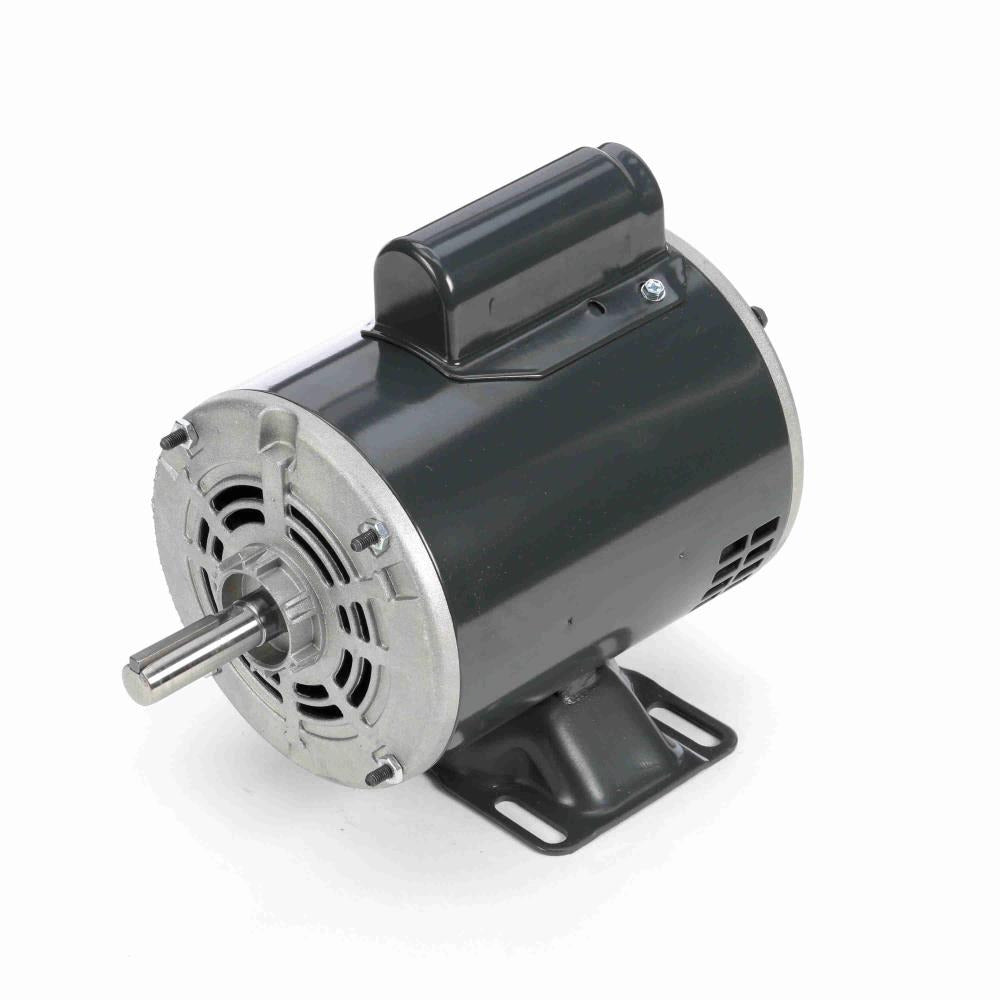

S012 Marathon General Purpose Motor - 1/2 HP - 1725 RPM - 115/230 V - Drip Proof
S012 Marathon General Purpose Motor - 1/2 HP - 1725 RPM - 115/230 V - Drip Proof
Regular price
$344.95 USD
Regular price
Sale price
$344.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
S012 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | S012 |
|---|---|
| Manufacturer Model | 056C17D2098 |
| Stu's / Vendor SKU | MS012 |
Specifications
| Horsepower | 1/2 HP |
|---|---|
| kW | 0.37 kW |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full-Load Amps | 9.1/4.5 A |
| Service Factor | 1 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 60 % |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 1.97 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
