R317A Marathon General Purpose Motor - 1.5-1 HP - Totally Enclosed Fan Cooled
R317A Marathon General Purpose Motor - 1.5-1 HP - Totally Enclosed Fan Cooled
Regular price
$831.95 USD
Regular price
Sale price
$831.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

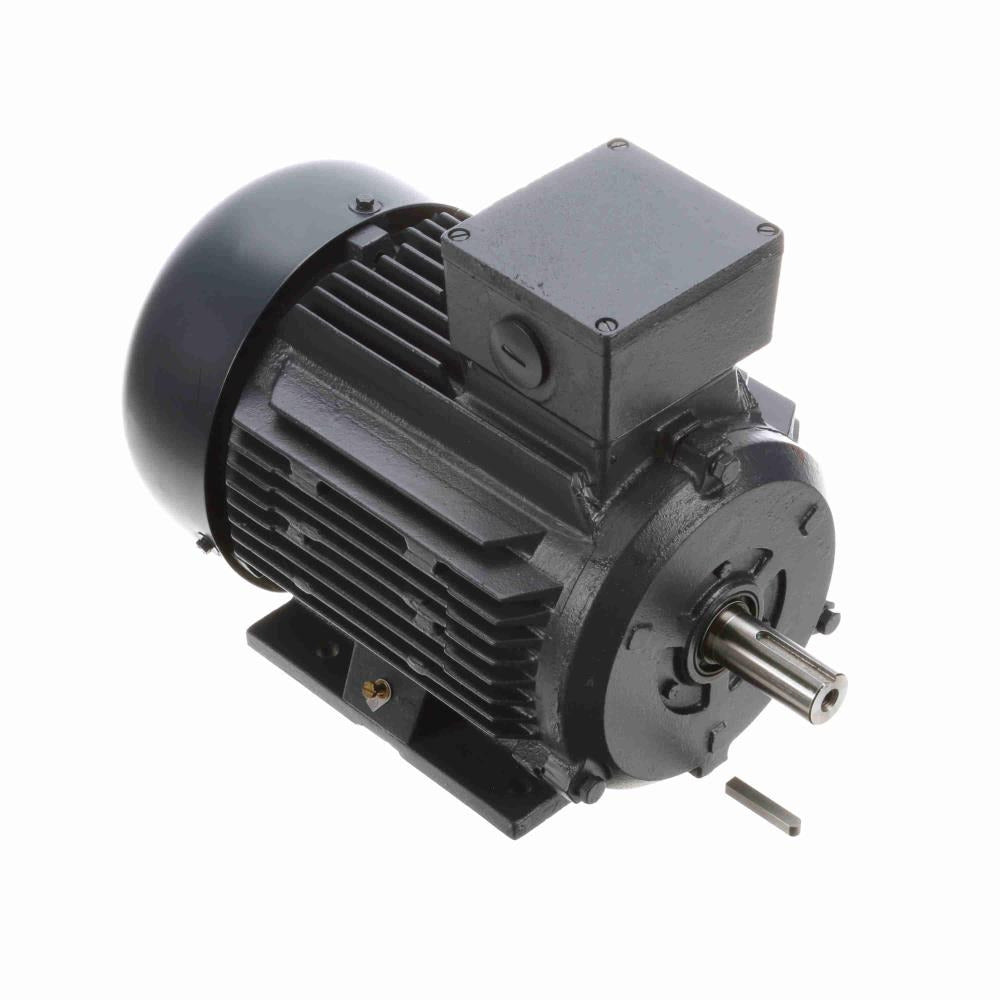

R317A is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | R317A |
|---|---|
| Manufacturer Model | TCA1P13AE211GAA009 |
| Stu's / Vendor SKU | MR317 |
Specifications
| Horsepower | 1.5 HP |
|---|---|
| Alternate Horsepower | 1 HP |
| Phase | Three Phase |
| Electrical Type | Squirrel Cage Inverter Rated |
| Overload Protection | No Protection |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F3 |
| Shaft Configuration | IEC |
| Shaft Details | Diameter 1.102 in; Extension 2.36 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Cast Iron |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
