Marathon

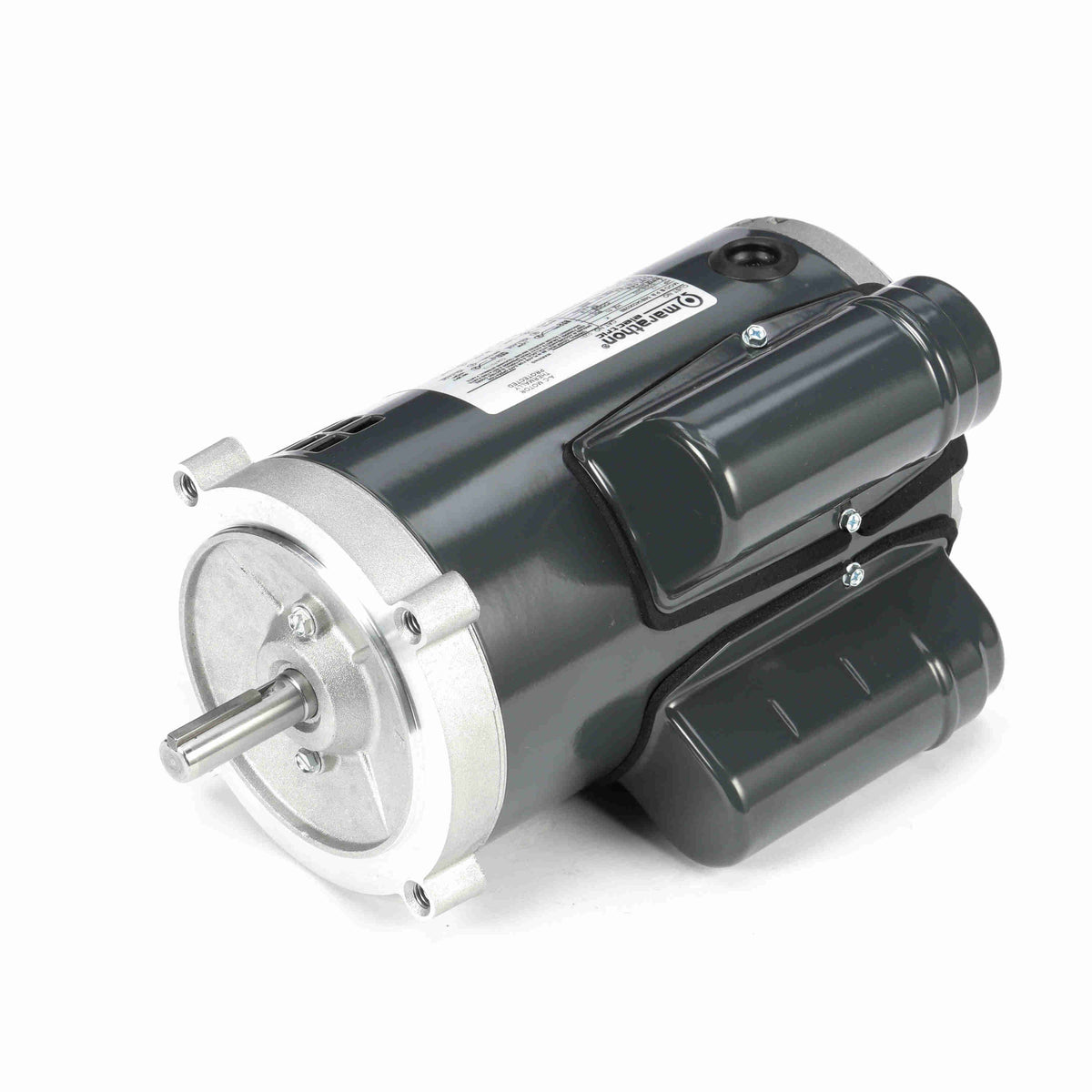

MO231 Marathon HVAC/R Motor, 1-1/2 HP, 3450 RPM, 115/208-230 V, Single Phase, 56C Frame, ODP
MO231 Marathon HVAC/R Motor, 1-1/2 HP, 3450 RPM, 115/208-230 V, Single Phase, 56C Frame, ODP
Regular price
$410.95 USD
Regular price
Sale price
$410.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MO231 is a new-in-box HVAC/R Motor from Marathon. Manufacturer model O231. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | O231 |
|---|---|
| Catalog / Order Number | MO231 |
| Product Type | HVAC/R Motor |
| Horsepower | 1-1/2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full Load Amps | 13.0/7.4-6.5 A |
| Service Factor | 1.3 |
| Overload Protection | Manual |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.625 in; Extension 2.09 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
