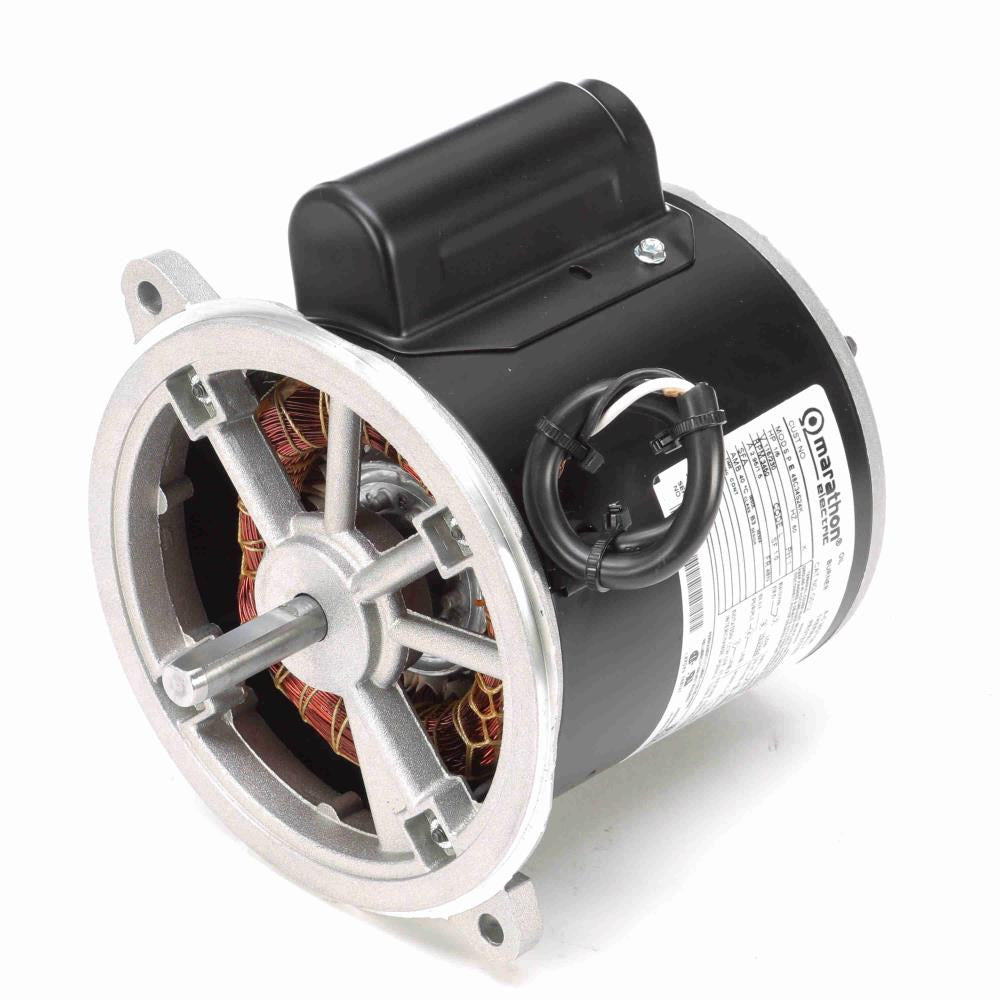

MO012 Marathon HVAC/R Motor, 1/5 HP, 3450 RPM, 115/230 V, Single Phase, 48N Frame, Semi-enclosed
MO012 Marathon HVAC/R Motor, 1/5 HP, 3450 RPM, 115/230 V, Single Phase, 48N Frame, Semi-enclosed
Regular price
$246.95 USD
Regular price
Sale price
$246.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MO012 is a new-in-box HVAC/R Motor from Marathon. Manufacturer model O012. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | O012 |
|---|---|
| Catalog / Order Number | MO012 |
| Product Type | HVAC/R Motor |
| Horsepower | 1/5 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 3.0/1.5 A |
| Service Factor | 1 |
| Overload Protection | Manual |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 48N |
| Enclosure | Semi-enclosed |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 48 |
| Shaft Details | Diameter 0.500 in; Extension 1.97 in |
| Rotation | Selective Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
