Marathon

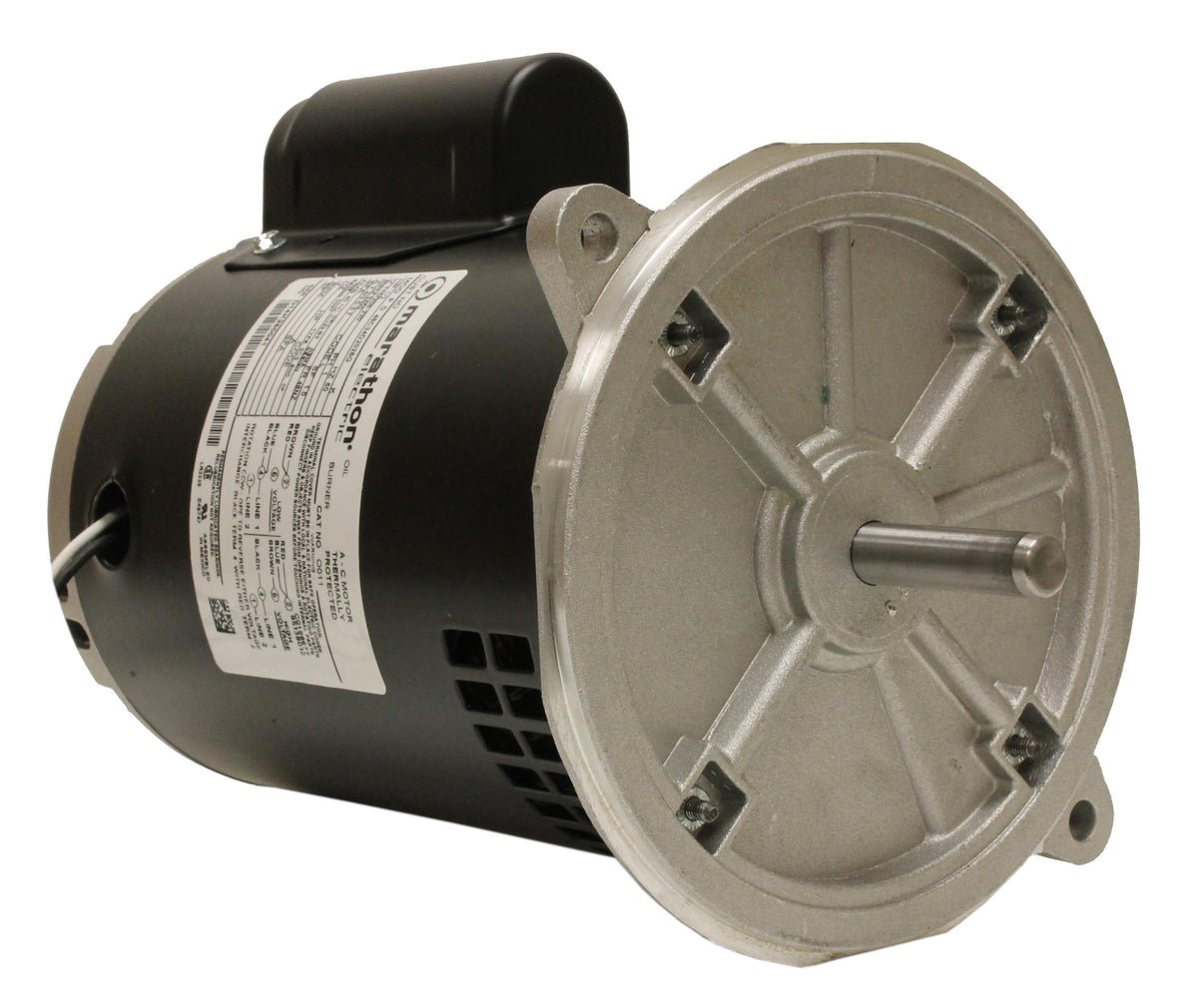

MO011 Marathon HVAC/R Motor, 1/2 HP, 3450 RPM, 115/208-230 V, Single Phase, 48NZ Frame, ODP
MO011 Marathon HVAC/R Motor, 1/2 HP, 3450 RPM, 115/208-230 V, Single Phase, 48NZ Frame, ODP
Regular price
$296.95 USD
Regular price
Sale price
$296.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MO011 is a new-in-box HVAC/R Motor from Marathon. Manufacturer model O011. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | O011 |
|---|---|
| Catalog / Order Number | MO011 |
| Product Type | HVAC/R Motor |
| Horsepower | 1/2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 7.4/3.5-3.7 A |
| Service Factor | 1 |
| Overload Protection | Manual |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 48NZ |
| Enclosure | ODP |
| Mounting | F1 Only |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 1.97 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
