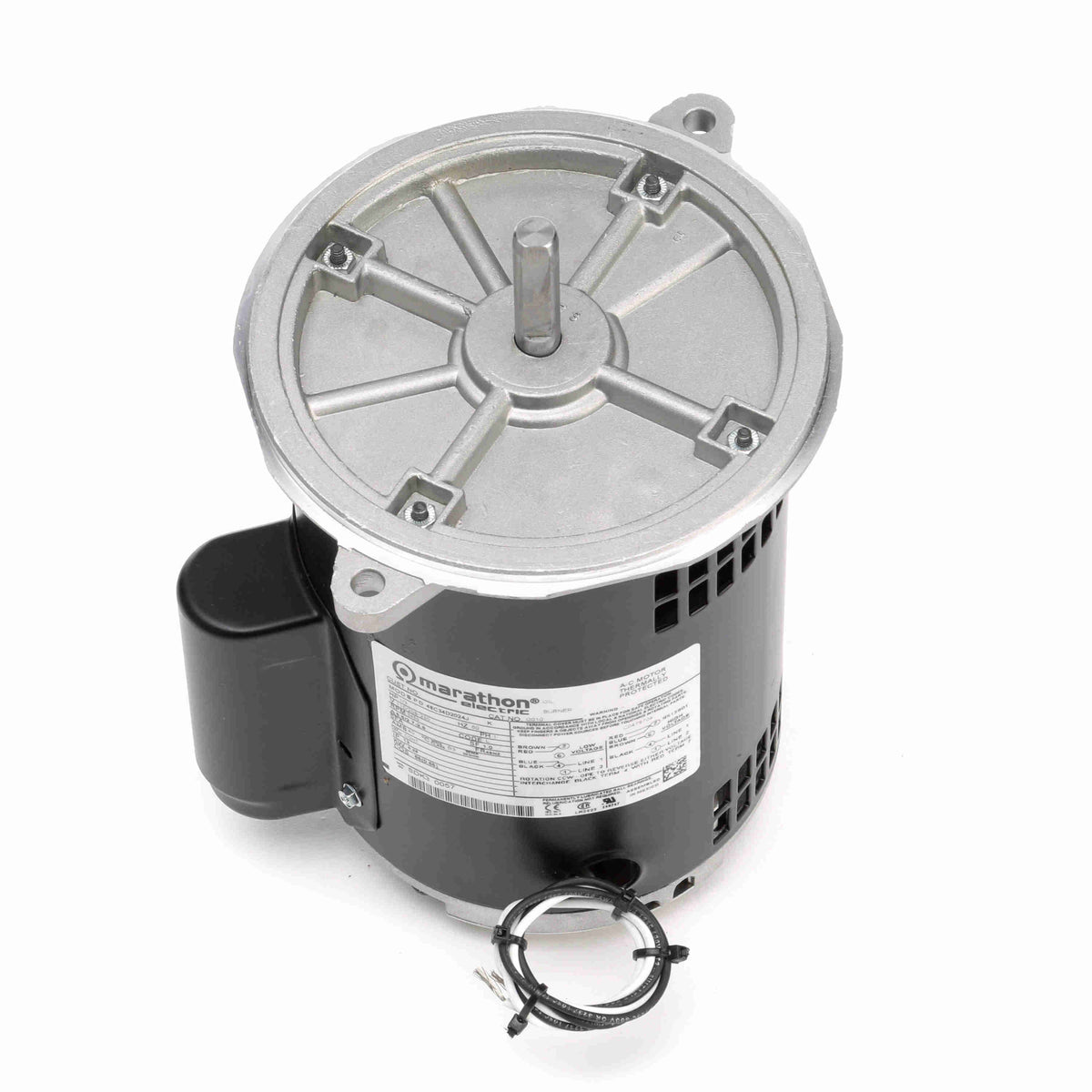

MO010 Marathon HVAC/R Motor, 1/3 HP, 3450 RPM, 115/208-230 V, Single Phase, 48NZ Frame, ODP
MO010 Marathon HVAC/R Motor, 1/3 HP, 3450 RPM, 115/208-230 V, Single Phase, 48NZ Frame, ODP
Regular price
$263.95 USD
Regular price
Sale price
$263.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MO010 is a new-in-box HVAC/R Motor from Marathon. Manufacturer model O010. Designed for Industrial motor.
Specifications
| Manufacturer Part Number | O010 |
|---|---|
| Catalog / Order Number | MO010 |
| Product Type | HVAC/R Motor |
| Horsepower | 1/3 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full Load Amps | 5.6/2.7-2.8 A |
| Service Factor | 1 |
| Overload Protection | Manual |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 48NZ |
| Enclosure | ODP |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 1.94 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
