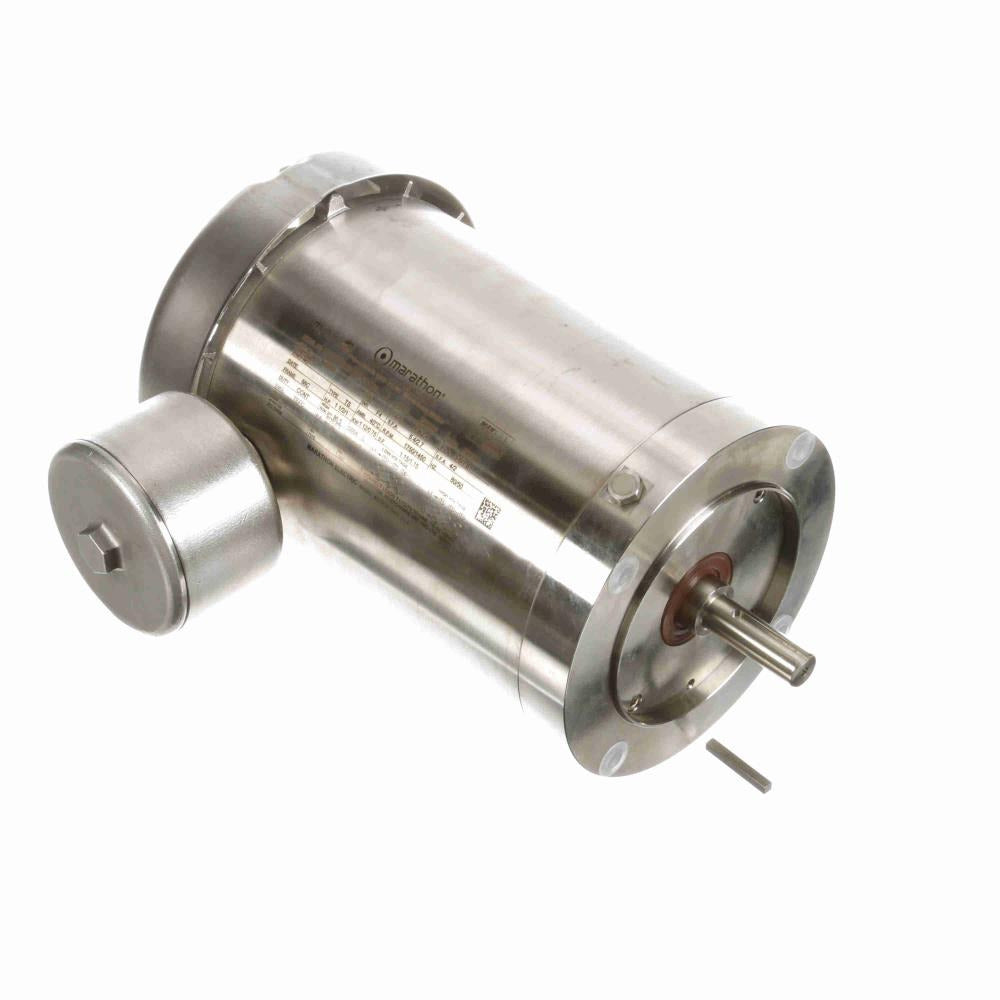

N468B Marathon Washdown Motor - 1.5 HP - 1750 RPM - 230/460 V - Totally Enclosed Fan Cooled
N468B Marathon Washdown Motor - 1.5 HP - 1750 RPM - 230/460 V - Totally Enclosed Fan Cooled
Regular price
$434.95 USD
Regular price
Sale price
$434.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
N468B is a new-in-box Washdown Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | N468B |
|---|---|
| Manufacturer Model | 056T17W99028 |
| Stu's / Vendor SKU | MN468B |
Specifications
| Horsepower | 1.5 HP |
|---|---|
| kW | 1.1 kW |
| Rated RPM | 1750 RPM |
| Voltage | 230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Inverter Rated |
| Full-Load Amps | 4.8/2.4 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F1/F2 Capable |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 2.07 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Stainless Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
