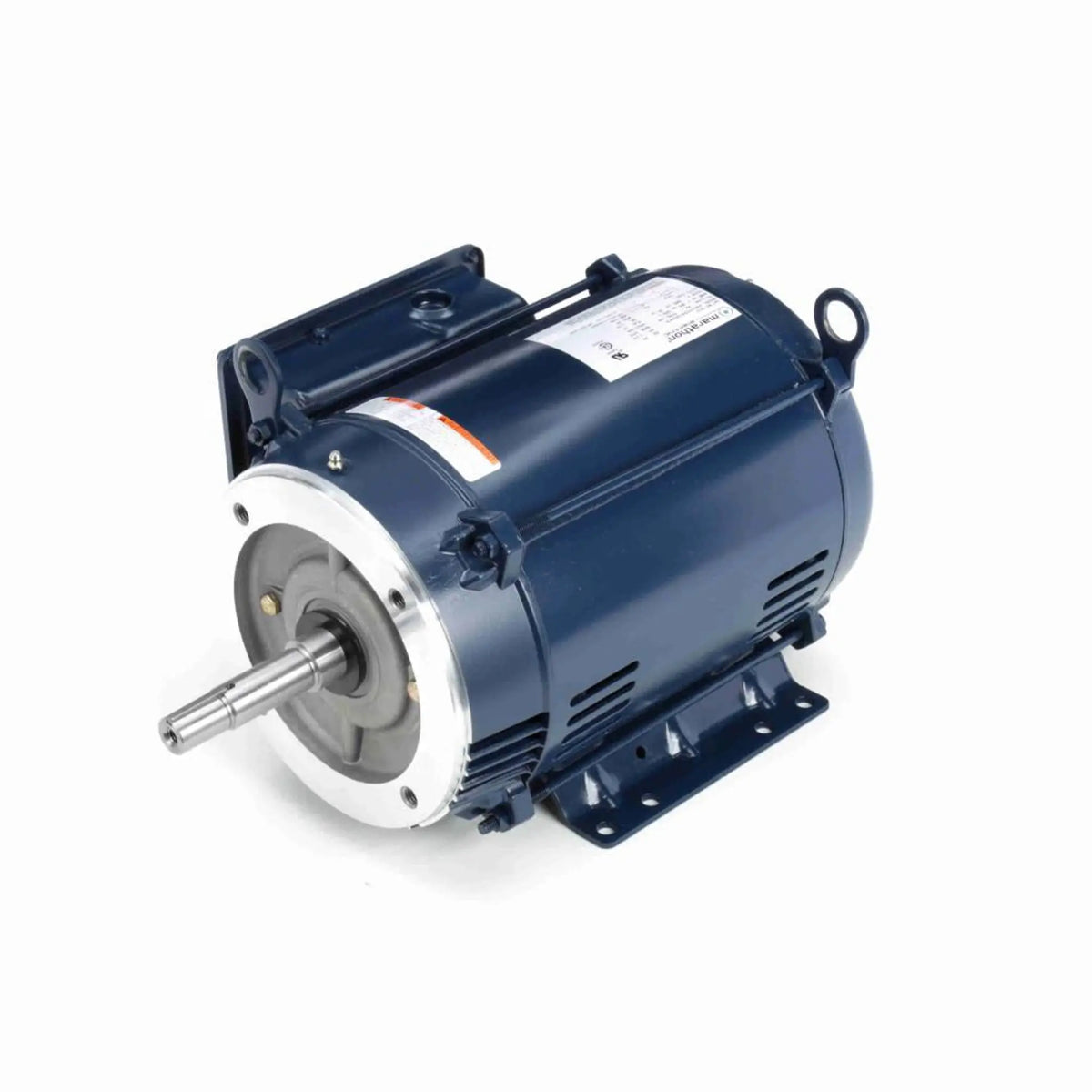

Z410 Marathon Pump Motor - 7.5 HP - 3470 RPM - 230 V - Drip Proof
Z410 Marathon Pump Motor - 7.5 HP - 3470 RPM - 230 V - Drip Proof
Regular price
$1,113.95 USD
Regular price
Sale price
$1,113.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Z410 is a new-in-box Pump Motor from Marathon. Designed for pump applications.
Identifiers
| Manufacturer Catalog Number | Z410 |
|---|---|
| Manufacturer Model | 213TCDW7002 |
| Stu's / Vendor SKU | MZ410 |
Specifications
| Horsepower | 7.5 HP |
|---|---|
| kW | 5.6 kW |
| Rated RPM | 3470 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full-Load Amps | 37.0 A |
| Service Factor | 1.15 |
| Overload Protection | No Protection |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 78.5 % |
| Speed Count | 1 |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | JM |
| Shaft Details | Diameter 0.875 in; Extension 4.25 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
