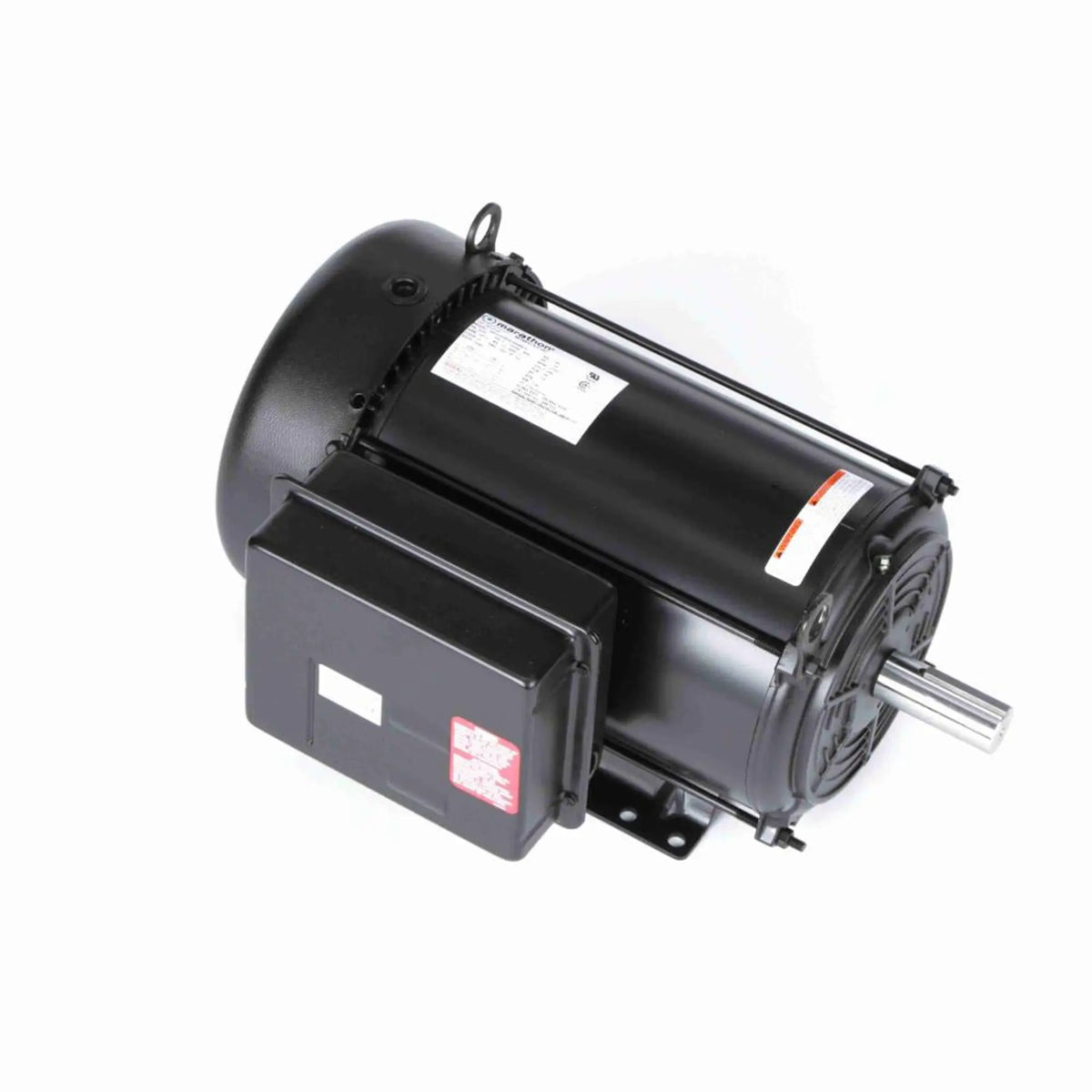

Z115 Marathon Farm Duty Motor - 7.5 HP - 1750 RPM - 230 V - Totally Enclosed Fan Cooled
Z115 Marathon Farm Duty Motor - 7.5 HP - 1750 RPM - 230 V - Totally Enclosed Fan Cooled
Regular price
$1,486.95 USD
Regular price
Sale price
$1,486.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Z115 is a new-in-box Farm Duty Motor from Marathon. Designed for farm-duty applications.
Identifiers
| Manufacturer Catalog Number | Z115 |
|---|---|
| Manufacturer Model | 215TBFW7028 |
| Stu's / Vendor SKU | MZ115 |
Specifications
| Horsepower | 7.5 HP |
|---|---|
| kW | 5.6 kW |
| Rated RPM | 1750 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 30.5 A |
| Service Factor | 1.15 |
| Overload Protection | Manual |
| Duty Rating | Motor, 7.50 HP, 1 Ph, 60 Hz, 230 V, 1800 RPM, 215TZ |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 85.5 % |
| Speed Count | 1 |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 1.125 in; Extension 3.5 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
