Marathon

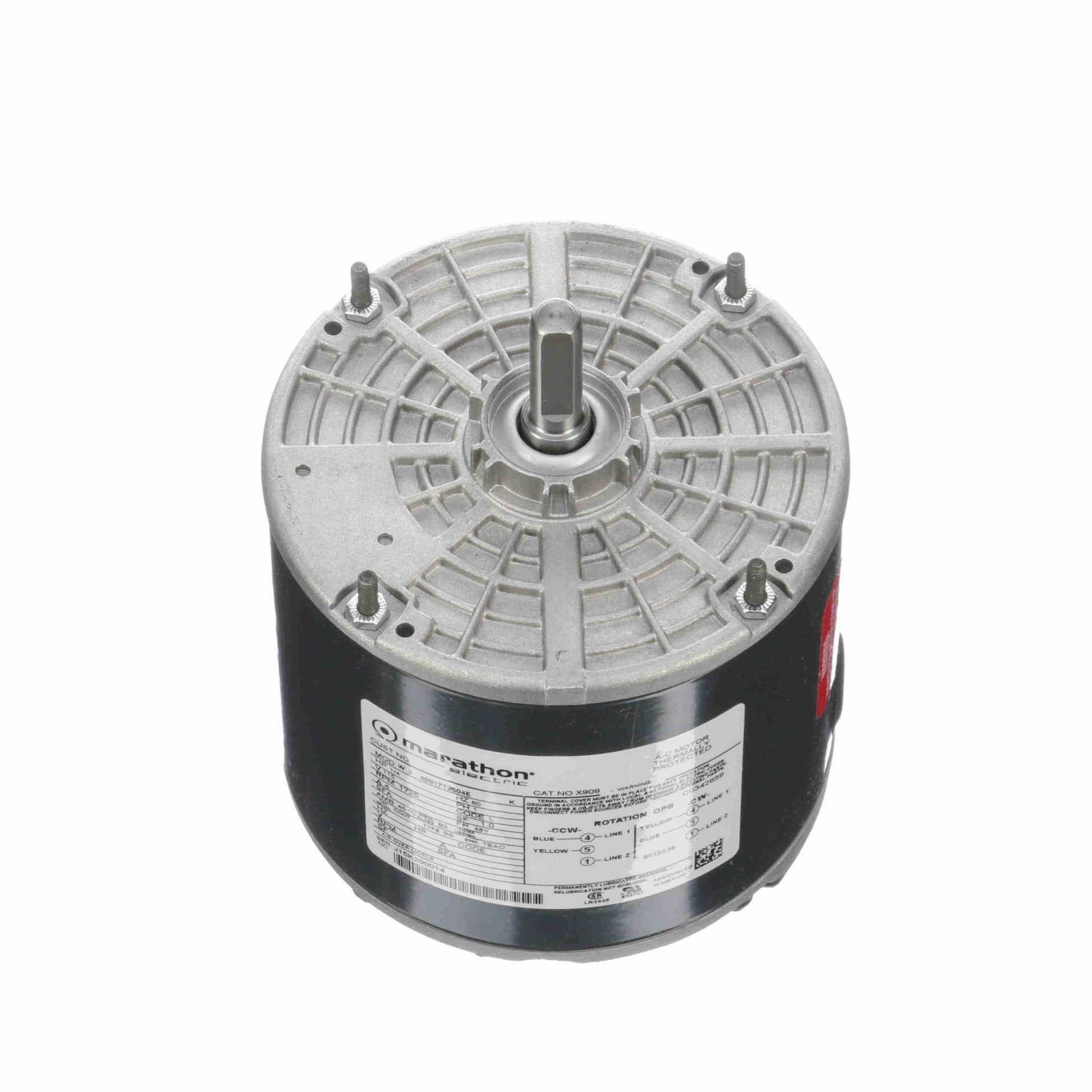

MX909 Marathon Farm Duty Motor, 1/4 HP, 1725 RPM, 115 V, Single Phase, 48Y Frame, TEAO
MX909 Marathon Farm Duty Motor, 1/4 HP, 1725 RPM, 115 V, Single Phase, 48Y Frame, TEAO
Regular price
$86.95 USD
Regular price
Sale price
$86.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MX909 is a new-in-box Farm Duty Motor from Marathon. Manufacturer model X909. Designed for General Purpose.
Specifications
| Manufacturer Part Number | X909 |
|---|---|
| Catalog / Order Number | MX909 |
| Product Type | Farm Duty Motor |
| Horsepower | 1/4 HP |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full Load Amps | 4.0 A |
| Service Factor | 1 |
| Overload Protection | Manual |
| Duty Rating | Motor, 1 |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 48Y |
| Enclosure | TEAO |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 48 |
| Shaft Details | Diameter 0.500 in; Extension 1.56 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
