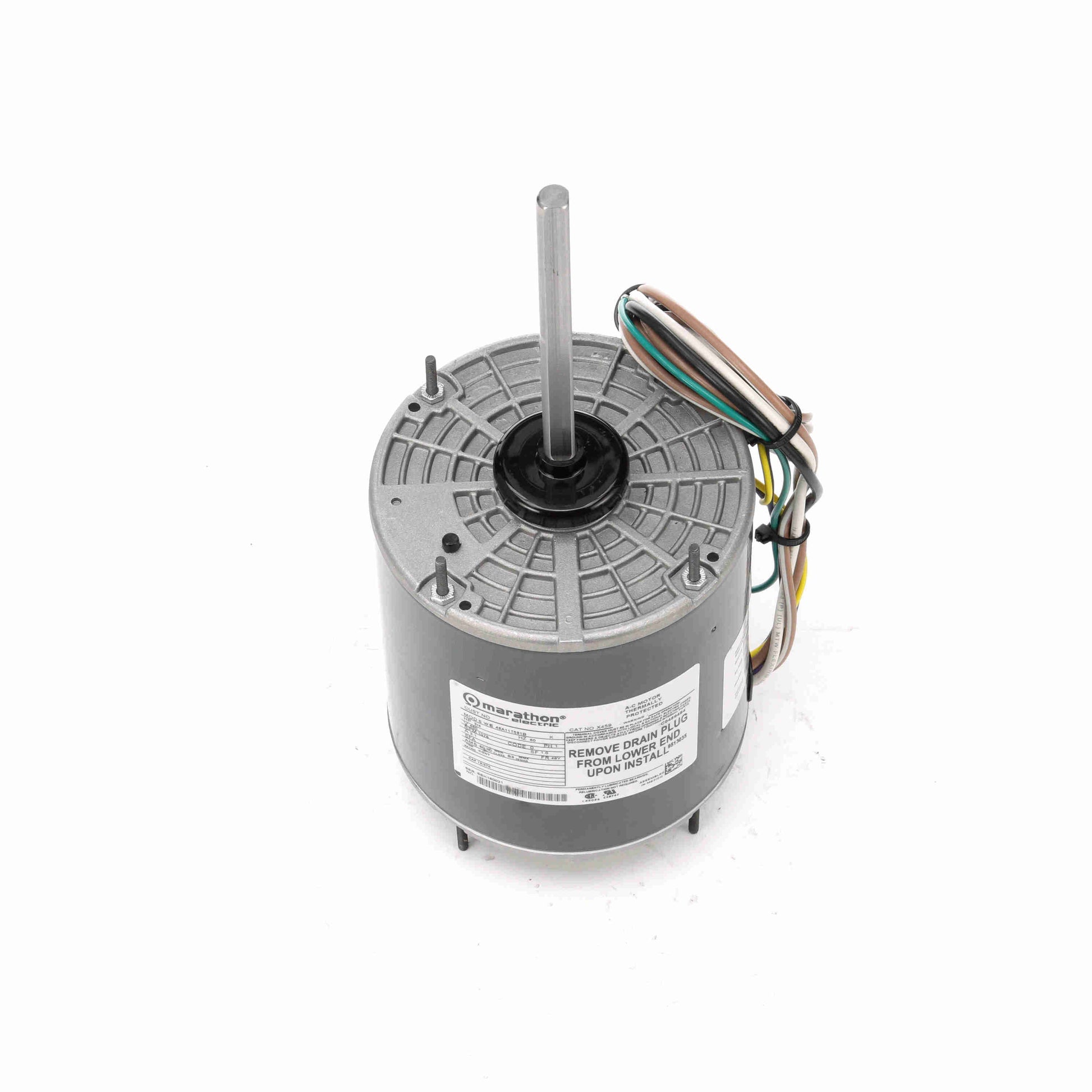

X459 Marathon Condenser Fan Motor - 3/4 HP - 1075 RPM - 460 V - Totally Enclosed Air Over
X459 Marathon Condenser Fan Motor - 3/4 HP - 1075 RPM - 460 V - Totally Enclosed Air Over
Regular price
$316.95 USD
Regular price
Sale price
$316.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
X459 is a new-in-box Condenser Fan Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | X459 |
|---|---|
| Manufacturer Model | 048A11T581 |
| Stu's / Vendor SKU | MX459 |
Specifications
| Horsepower | 3/4 HP |
|---|---|
| kW | 0.56 kW |
| Rated RPM | 1075 RPM |
| Voltage | 460 V |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 2.1 A |
| Service Factor | 1 |
| Overload Protection | Automatic Lock Rotor Only |
| Duty Rating | Continuous |
| Ambient Rating | 60 °C |
| Insulation Class | B |
| Efficiency | 68 % |
| Enclosure | Totally Enclosed Air Over |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 6.06 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
