Marathon

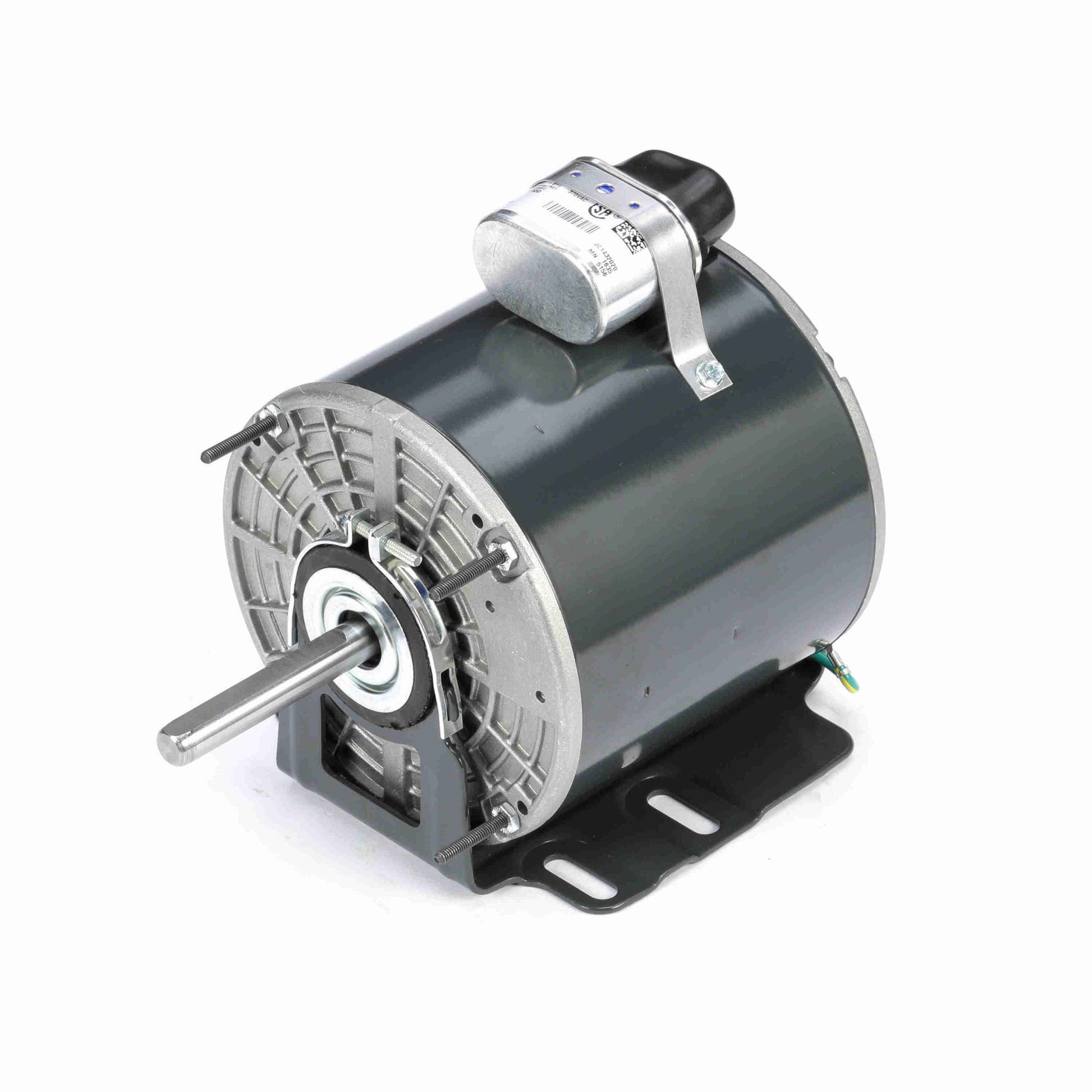

X301 Marathon HVAC Motor - 1/6 HP - 1625 RPM - 115 V - Totally Enclosed Air Over
X301 Marathon HVAC Motor - 1/6 HP - 1625 RPM - 115 V - Totally Enclosed Air Over
Regular price
$265.95 USD
Regular price
Sale price
$265.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
X301 is a new-in-box HVAC Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | X301 |
|---|---|
| Manufacturer Model | 048A17T72 |
| Stu's / Vendor SKU | MX301 |
Specifications
| Horsepower | 1/6 HP |
|---|---|
| kW | 0.13 kW |
| Rated RPM | 1625 RPM |
| Voltage | 115 V |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 2.2 A |
| Service Factor | 1 |
| Overload Protection | Automatic Lock Rotor Only |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 55 % |
| Enclosure | Totally Enclosed Air Over |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 2.81 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
