X261 Marathon Definite Purpose Motor - 0.13 HP - 825 RPM - 115 V - Open Enclosed
X261 Marathon Definite Purpose Motor - 0.13 HP - 825 RPM - 115 V - Open Enclosed
Regular price
$301.95 USD
Regular price
Sale price
$301.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

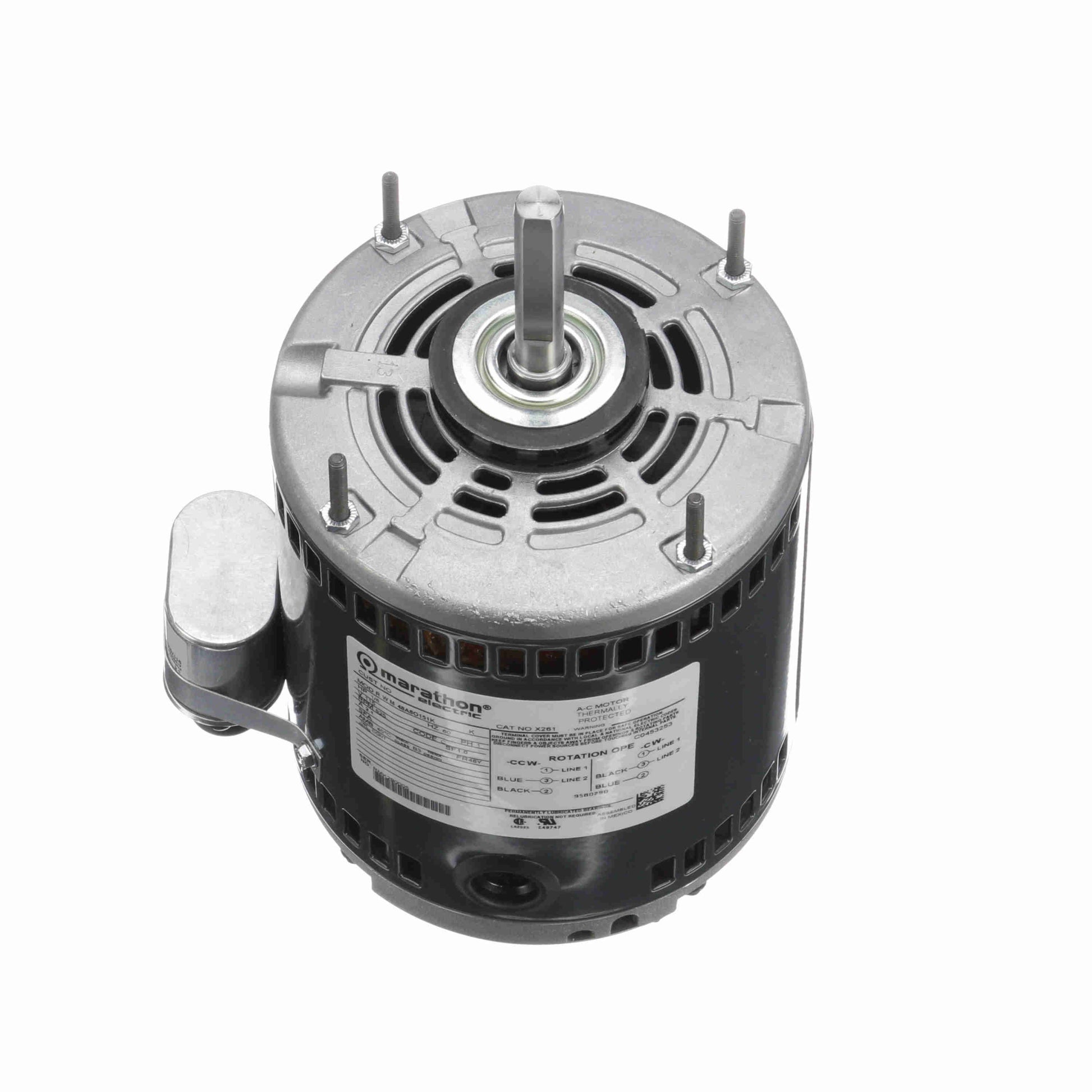

X261 is a new-in-box Definite Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | X261 |
|---|---|
| Manufacturer Model | 048A8O151 |
| Stu's / Vendor SKU | MX261 |
Specifications
| Horsepower | 0.13 HP |
|---|---|
| kW | 0.09 kW |
| Rated RPM | 825 RPM |
| Voltage | 115 V |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 2.1 A |
| Service Factor | 1 |
| Overload Protection | Automatic Lock Rotor Only |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 53.3 % |
| Enclosure | Open Enclosed |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 2.59 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
