Marathon
X260 Marathon General Purpose Motor - 1/6 HP - 1075 RPM - 115 V - Open Air Over
X260 Marathon General Purpose Motor - 1/6 HP - 1075 RPM - 115 V - Open Air Over
Regular price
$315.95 USD
Regular price
Sale price
$315.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

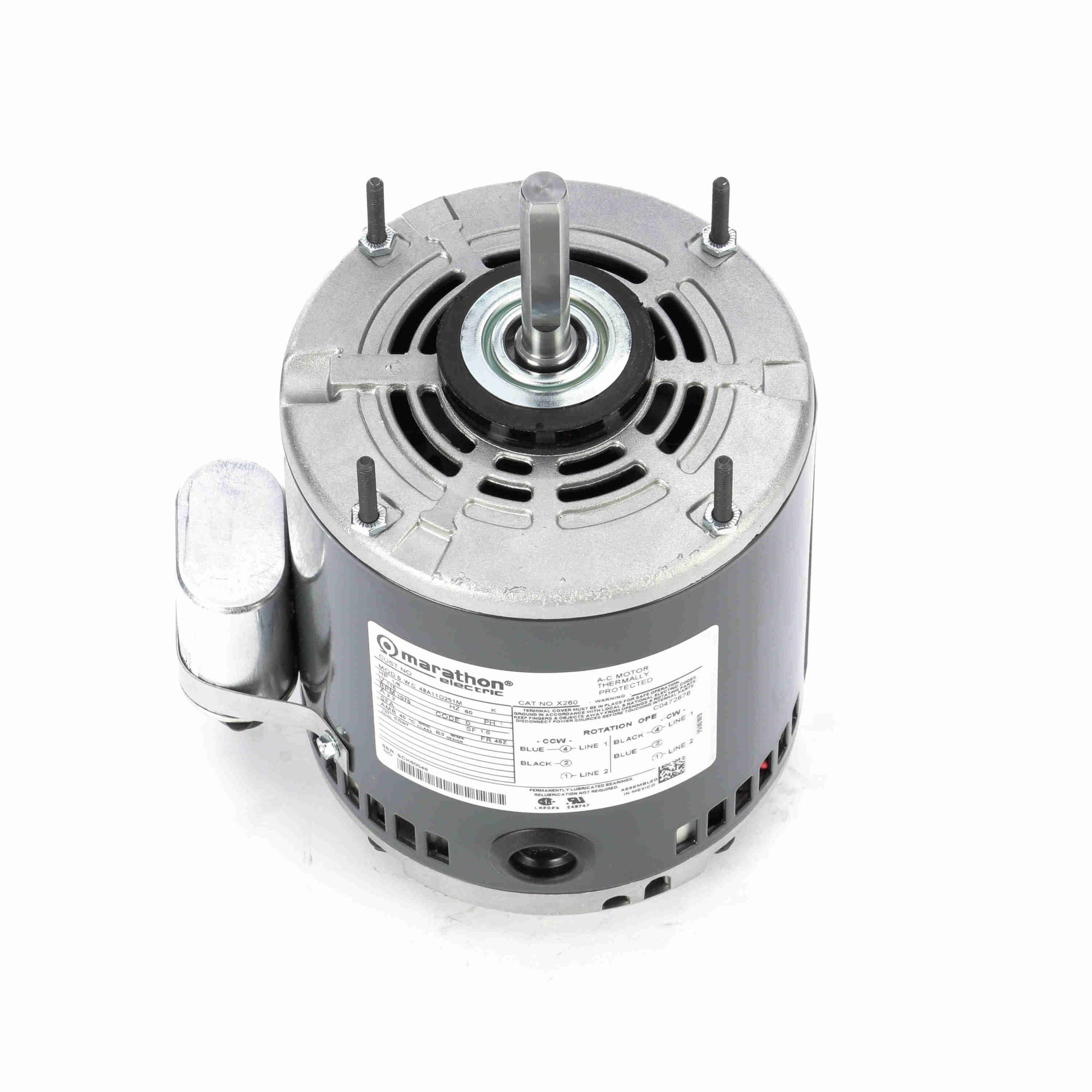

X260 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | X260 |
|---|---|
| Manufacturer Model | 048A11O251 |
| Stu's / Vendor SKU | MX260 |
Specifications
| Horsepower | 1/6 HP |
|---|---|
| kW | 0.13 kW |
| Rated RPM | 1075 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 2.2 A |
| Service Factor | 1 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 56.4 % |
| Speed Count | 1 |
| Enclosure | Open Air Over |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 2.59 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
