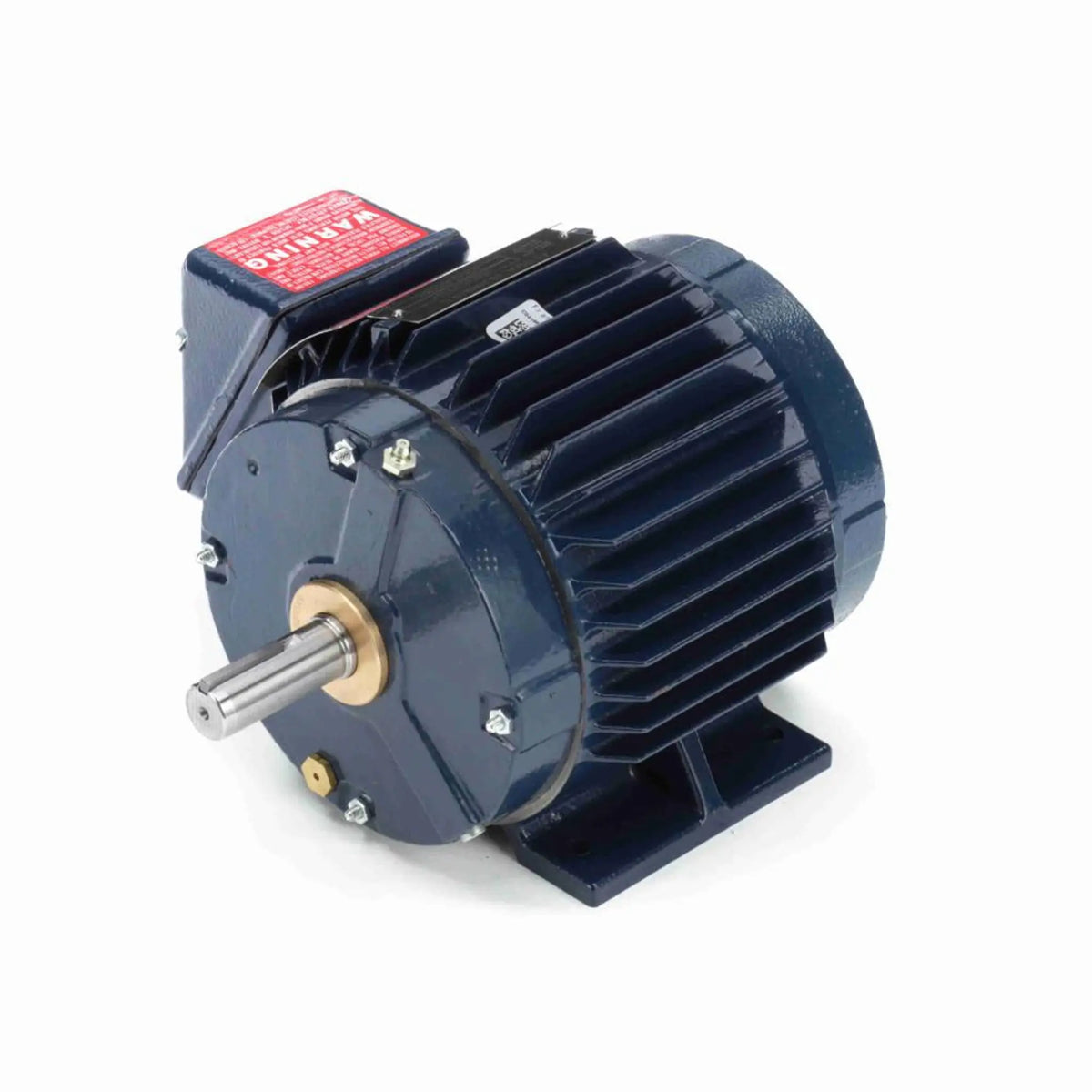

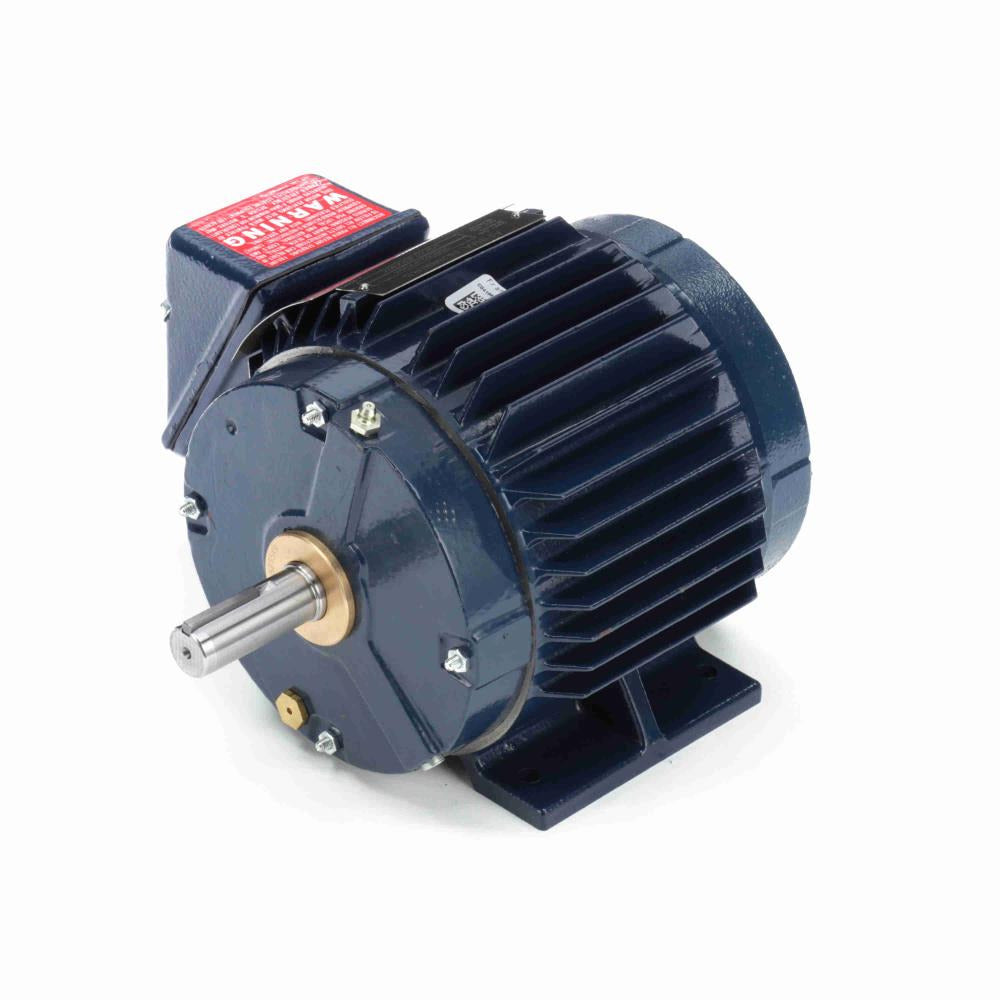

W501 Marathon General Purpose Motor - 1 HP - 1735 RPM - 460 V - Totally Enclosed Non Ventilated
W501 Marathon General Purpose Motor - 1 HP - 1735 RPM - 460 V - Totally Enclosed Non Ventilated
Regular price
$316.95 USD
Regular price
Sale price
$316.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
W501 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | W501 |
|---|---|
| Manufacturer Model | 143THTN9026 |
| Stu's / Vendor SKU | MW501 |
Specifications
| Horsepower | 1 HP |
|---|---|
| kW | 0.75 kW |
| Rated RPM | 1735 RPM |
| Voltage | 460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Inverter Rated |
| Full-Load Amps | 1.5 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 85.5 % |
| Speed Count | 1 |
| Frame | 143T |
| Enclosure | Totally Enclosed Non Ventilated |
| Mounting | F1/F2 CAPABLE |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.875 in; Extension 2.56 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Cast Iron |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
