Marathon

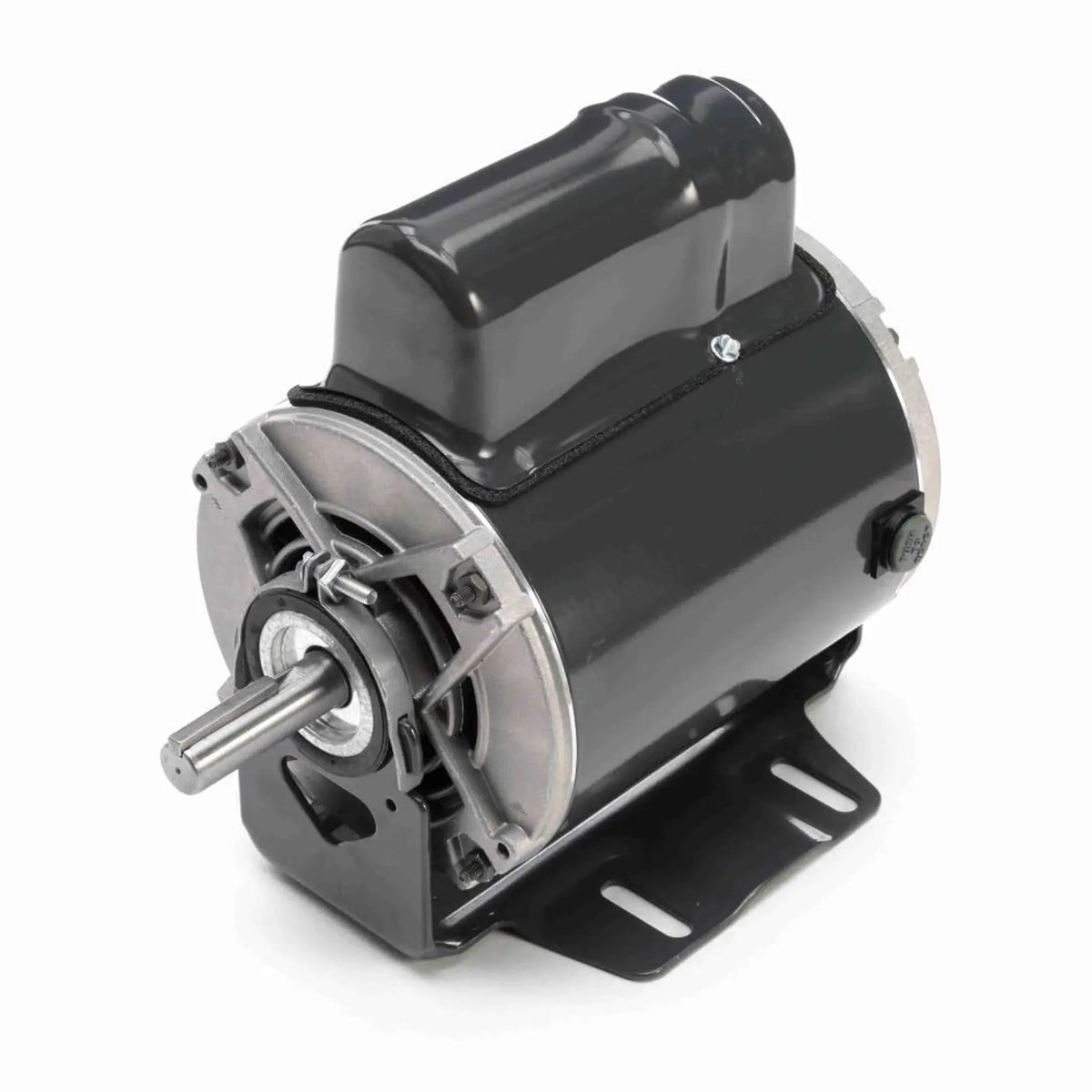

P254 Marathon Reversing Motor - 1/3 HP - 1625/1325 RPM - 115 V - Drip Proof
P254 Marathon Reversing Motor - 1/3 HP - 1625/1325 RPM - 115 V - Drip Proof
Regular price
$214.95 USD
Regular price
Sale price
$214.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
P254 is a new-in-box Reversing Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | P254 |
|---|---|
| Manufacturer Model | 5KCP35KNB650U |
| Stu's / Vendor SKU | MP254 |
Specifications
| Horsepower | 1/3 HP |
|---|---|
| kW | 0.25 kW |
| Rated RPM | 1625/1325 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor(PSC) |
| Full-Load Amps | 3.8 A |
| Service Factor | 1 |
| Overload Protection | Manual |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 57.5 % |
| Speed Count | 1 |
| Enclosure | Drip Proof |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Instant Reversible |
| Bearings | BALL / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
