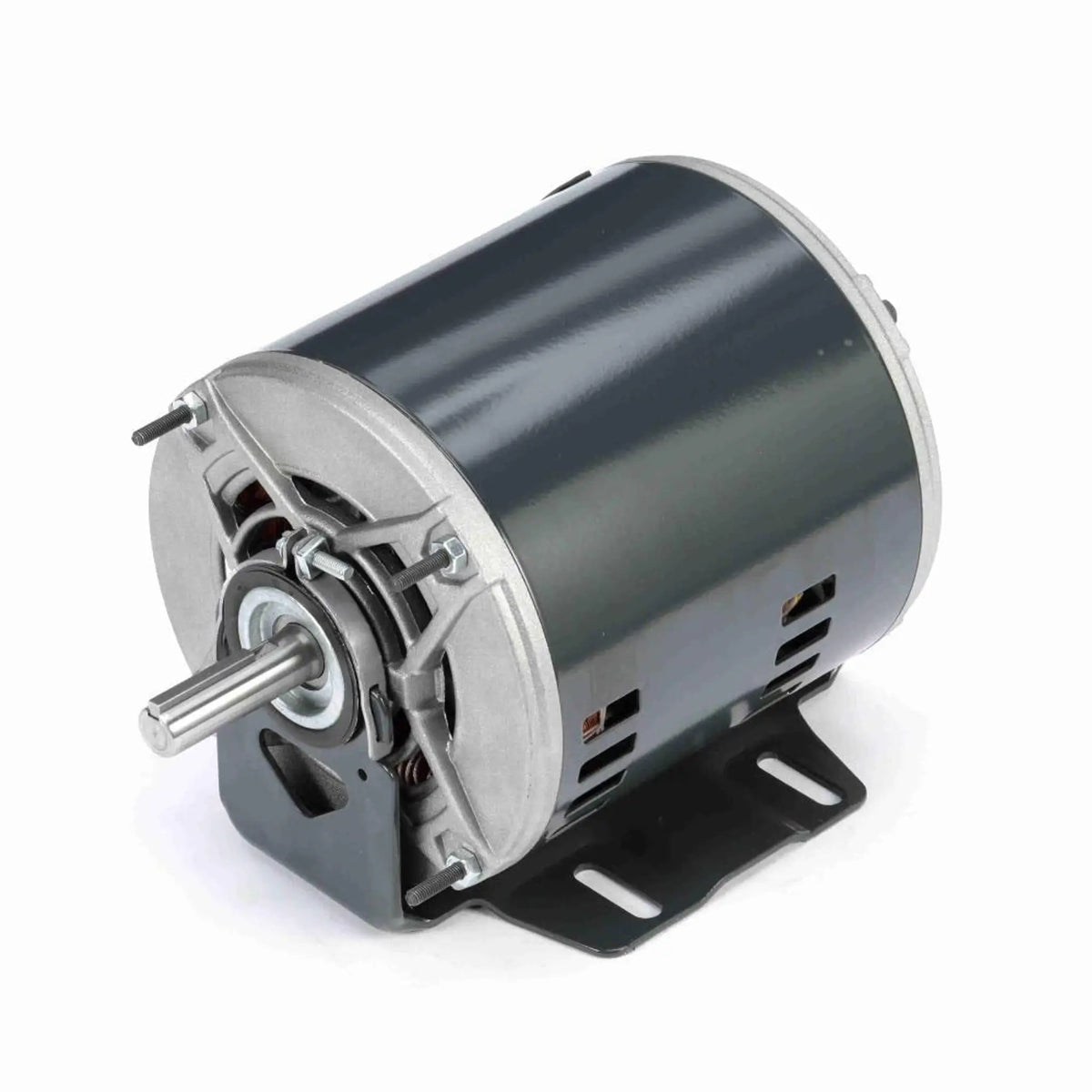

MK546 Marathon Fan & Blower Motor, 1/2-1/6 HP, 1800/1800 RPM, 460 V, Three Phase, 56 Frame, ODP
MK546 Marathon Fan & Blower Motor, 1/2-1/6 HP, 1800/1800 RPM, 460 V, Three Phase, 56 Frame, ODP
Regular price
$633.95 USD
Regular price
Sale price
$633.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MK546 is a new-in-box Fan & Blower Motor from Marathon. Manufacturer model K546. Designed for Fan and Blower.
Specifications
| Manufacturer Part Number | K546 |
|---|---|
| Catalog / Order Number | MK546 |
| Product Type | Fan & Blower Motor |
| Horsepower | 1/2-1/6 HP |
| Rated RPM | 1800/1800 RPM |
| Voltage | 460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full Load Amps | 1.1,0.6 A |
| Service Factor | 1.25 |
| Overload Protection | N/R |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
