Marathon
I217 Marathon General Purpose Motor - 10 HP - 1759 RPM - 230 V - TEFC
I217 Marathon General Purpose Motor - 10 HP - 1759 RPM - 230 V - TEFC
Regular price
$1,648.95 USD
Regular price
Sale price
$1,648.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

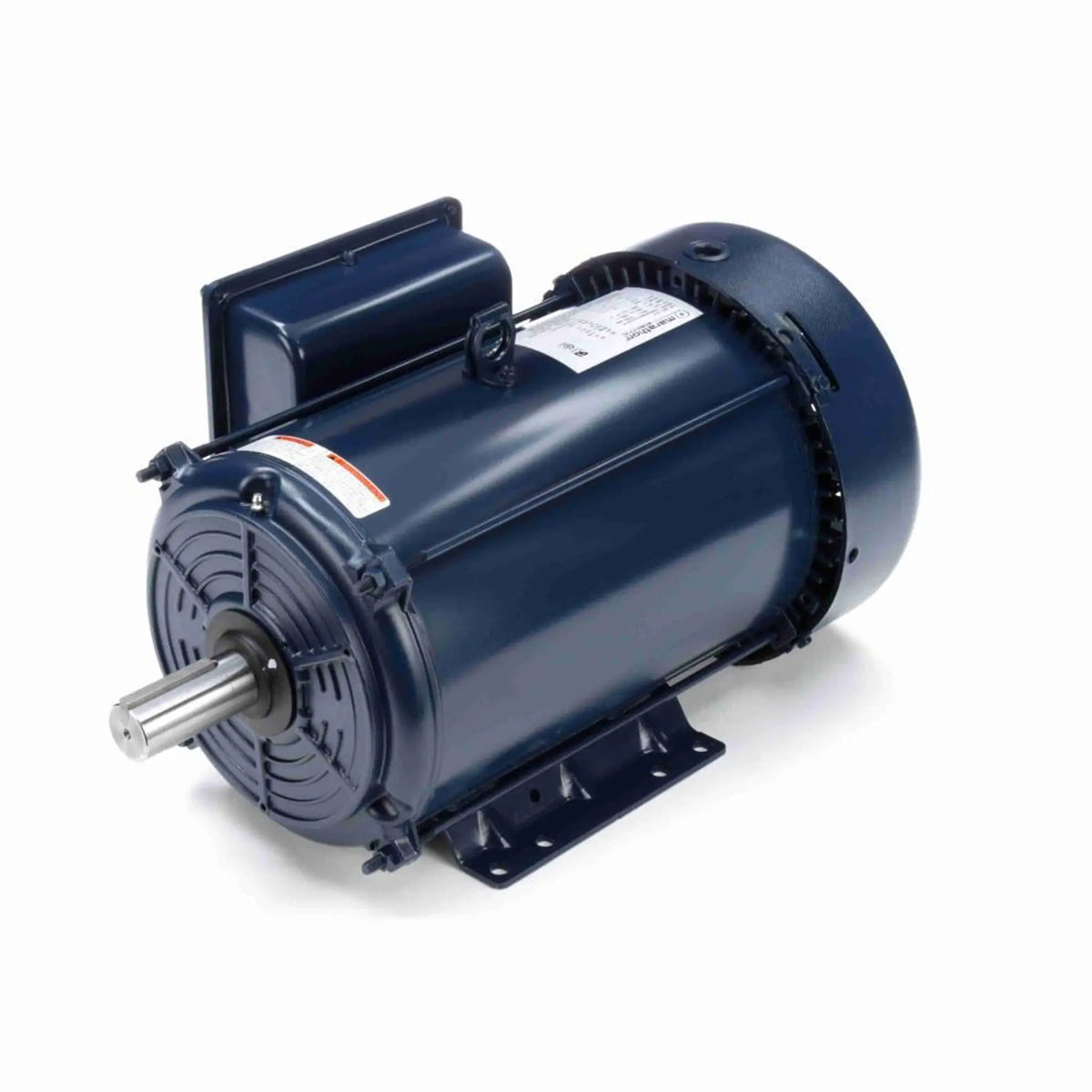

I217 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | I217 |
|---|---|
| Manufacturer Model | 215TBFW7027 |
| Stu's / Vendor SKU | MI217 |
Specifications
| Horsepower | 10 HP |
|---|---|
| kW | 7.5 kW |
| Rated RPM | 1759 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 41.5 A |
| Service Factor | 1.00 |
| Overload Protection | NOT |
| Duty Rating | CONTINUOUS |
| Ambient Rating | 40 °C |
| Insulation Class | F4 |
| Efficiency | 85.5 % |
| Speed Count | 1 |
| Enclosure | TEFC |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 1 3/8 in; Extension 3.47 in |
| Rotation | SELECTIVE CCW |
| Bearings | BALL / BALL |
| Material | ROLLED STEEL |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
