Marathon

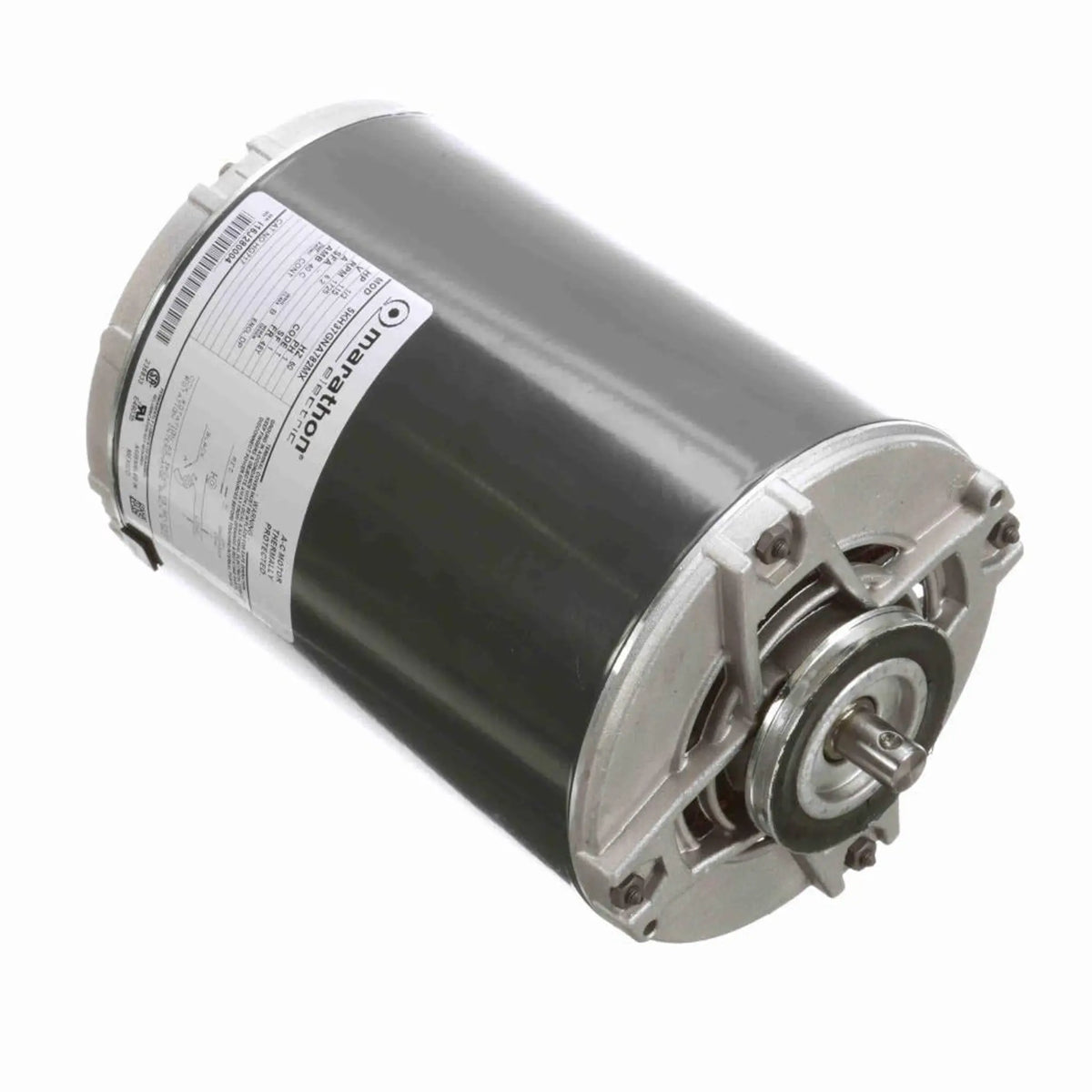

HG717 Marathon Fan & Blower Motor - 1/3 HP - 1725 RPM - 115 V - Drip Proof
HG717 Marathon Fan & Blower Motor - 1/3 HP - 1725 RPM - 115 V - Drip Proof
Regular price
$86.95 USD
Regular price
Sale price
$86.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HG717 is a new-in-box Fan & Blower Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | HG717 |
|---|---|
| Manufacturer Model | 5KH37GNA782X |
| Stu's / Vendor SKU | MHG717 |
Specifications
| Horsepower | 1/3 HP |
|---|---|
| kW | 0.25 kW |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split |
| Full-Load Amps | 6.2 A |
| Service Factor | 1 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 60 % |
| Speed Count | 1 |
| Enclosure | Drip Proof |
| Mounting | Resilient Rings |
| Shaft Details | Diameter 0.500 in; Extension 0.52 in Thru-bolts Extension 0 in |
| Rotation | Counterclockwise/Clockwise |
| Bearings | BALL / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
