MHG706 Marathon Fan & Blower Motor, 1/3-1/8 HP, 1800/1200 RPM, 115 V, Single Phase, 56Z Frame, ODP
MHG706 Marathon Fan & Blower Motor, 1/3-1/8 HP, 1800/1200 RPM, 115 V, Single Phase, 56Z Frame, ODP
Regular price
$483.95 USD
Regular price
Sale price
$483.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

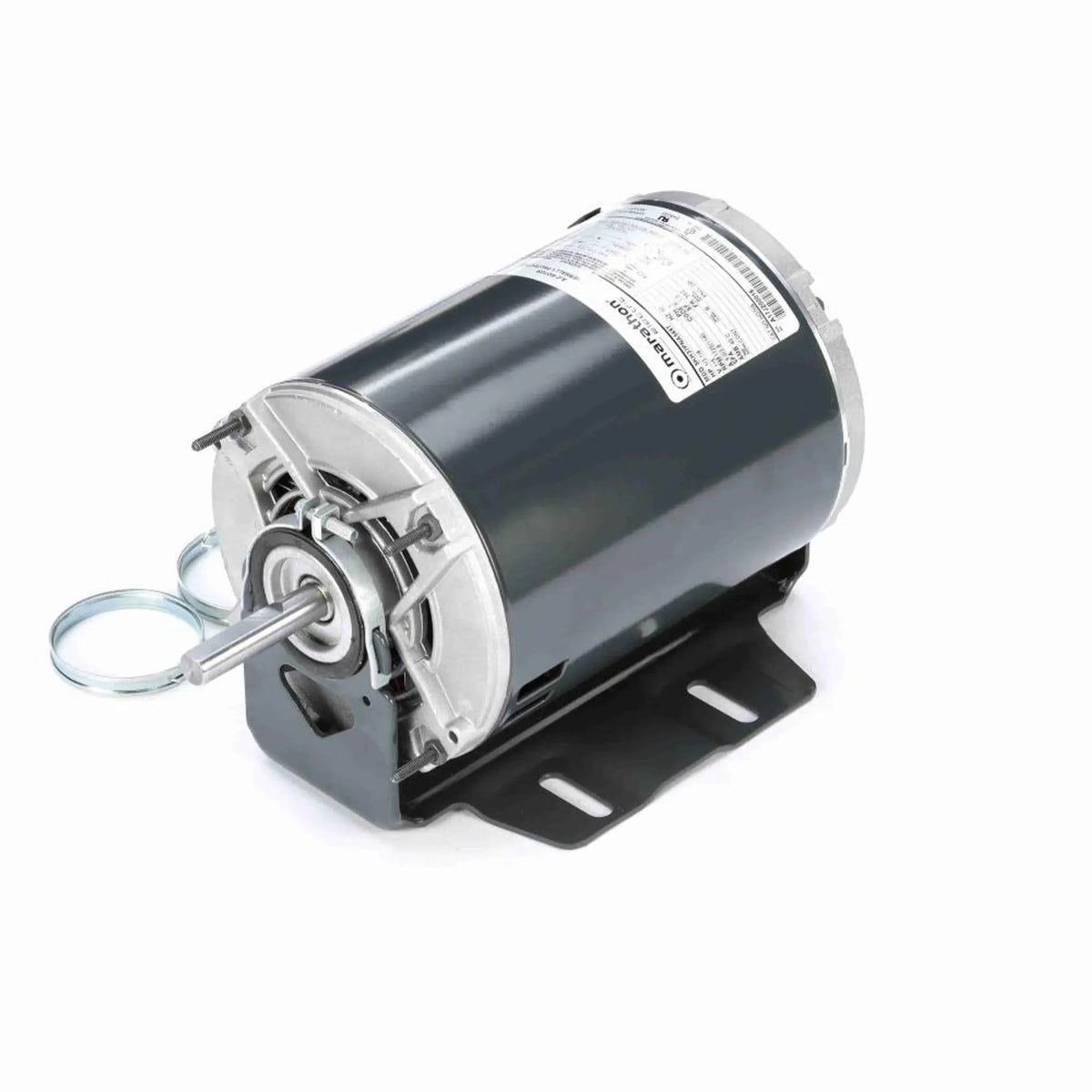

MHG706 is a new-in-box Fan & Blower Motor from Marathon. Manufacturer model HG706. Designed for Fan and Blower.
Specifications
| Manufacturer Part Number | HG706 |
|---|---|
| Catalog / Order Number | MHG706 |
| Product Type | Fan & Blower Motor |
| Horsepower | 1/3-1/8 HP |
| Rated RPM | 1800/1200 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full Load Amps | 6.0,3.8 A |
| Service Factor | 1 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56Z |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.500 in; Extension 2 in Thru-bolts Extension 0 in |
| Rotation | Clockwise/Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
