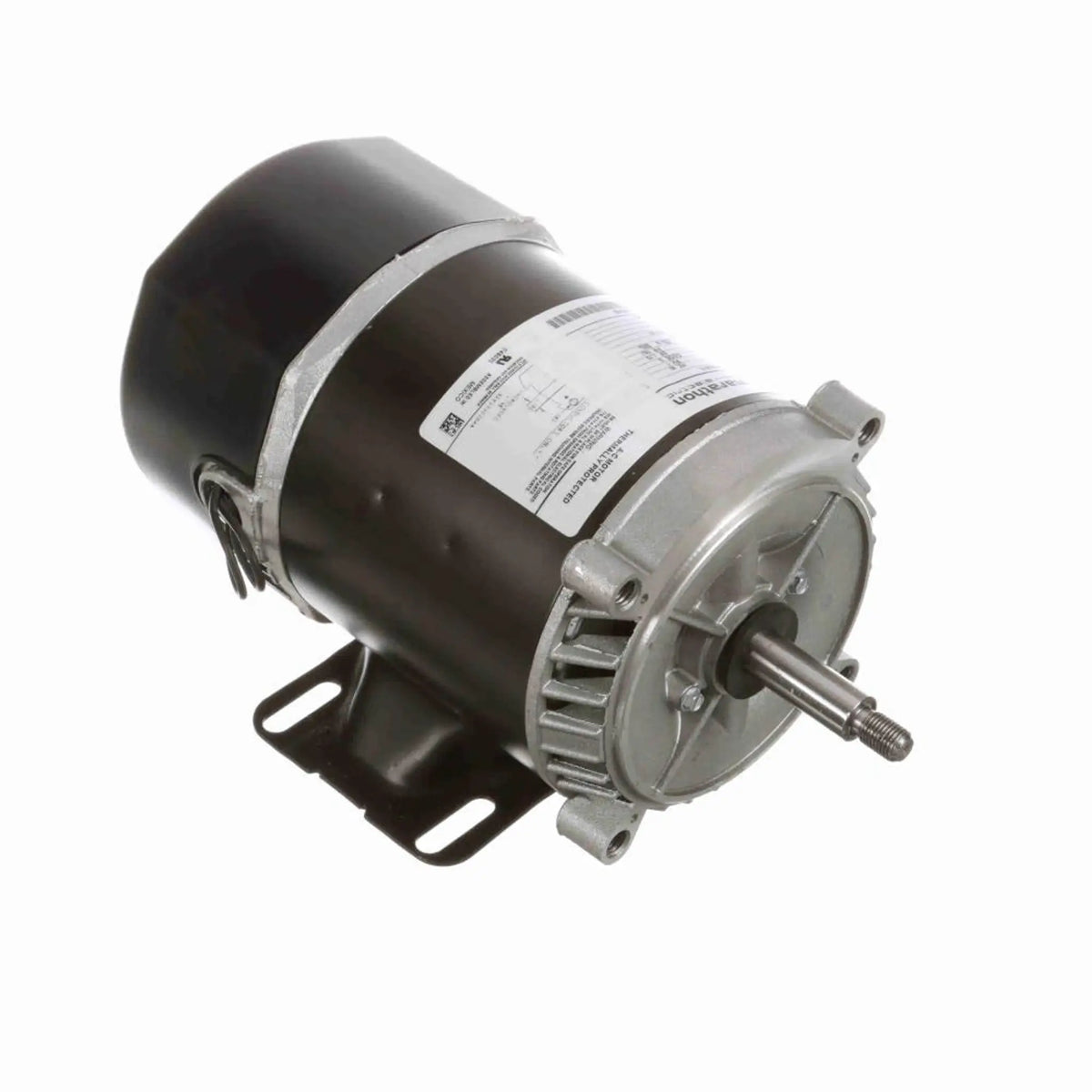

MH685 Marathon Condenser Fan Motor, 1 HP, 1140 RPM, 460/200-230 V, Three Phase, U56Y Frame, TEAO
MH685 Marathon Condenser Fan Motor, 1 HP, 1140 RPM, 460/200-230 V, Three Phase, U56Y Frame, TEAO
Regular price
$198.95 USD
Regular price
Sale price
$198.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MH685 is a new-in-box Condenser Fan Motor from Marathon. Manufacturer model H685. Designed for Condenser Fan.
Specifications
| Manufacturer Part Number | H685 |
|---|---|
| Catalog / Order Number | MH685 |
| Product Type | Condenser Fan Motor |
| Horsepower | 1 HP |
| Rated RPM | 1140 RPM |
| Voltage | 460/200-230 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Full Load Amps | 1.9/4.2-3.8 A |
| Service Factor | 1 |
| Overload Protection | Thermally Protected |
| Duty Rating | Continuous |
| Ambient | 60 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | U56Y |
| Enclosure | TEAO |
| Mounting | Rigid Base |
| Shaft Configuration | Keyed |
| Shaft Details | Diameter 0.625 in; Extension 3.56 in |
| Rotation | Reversible Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
