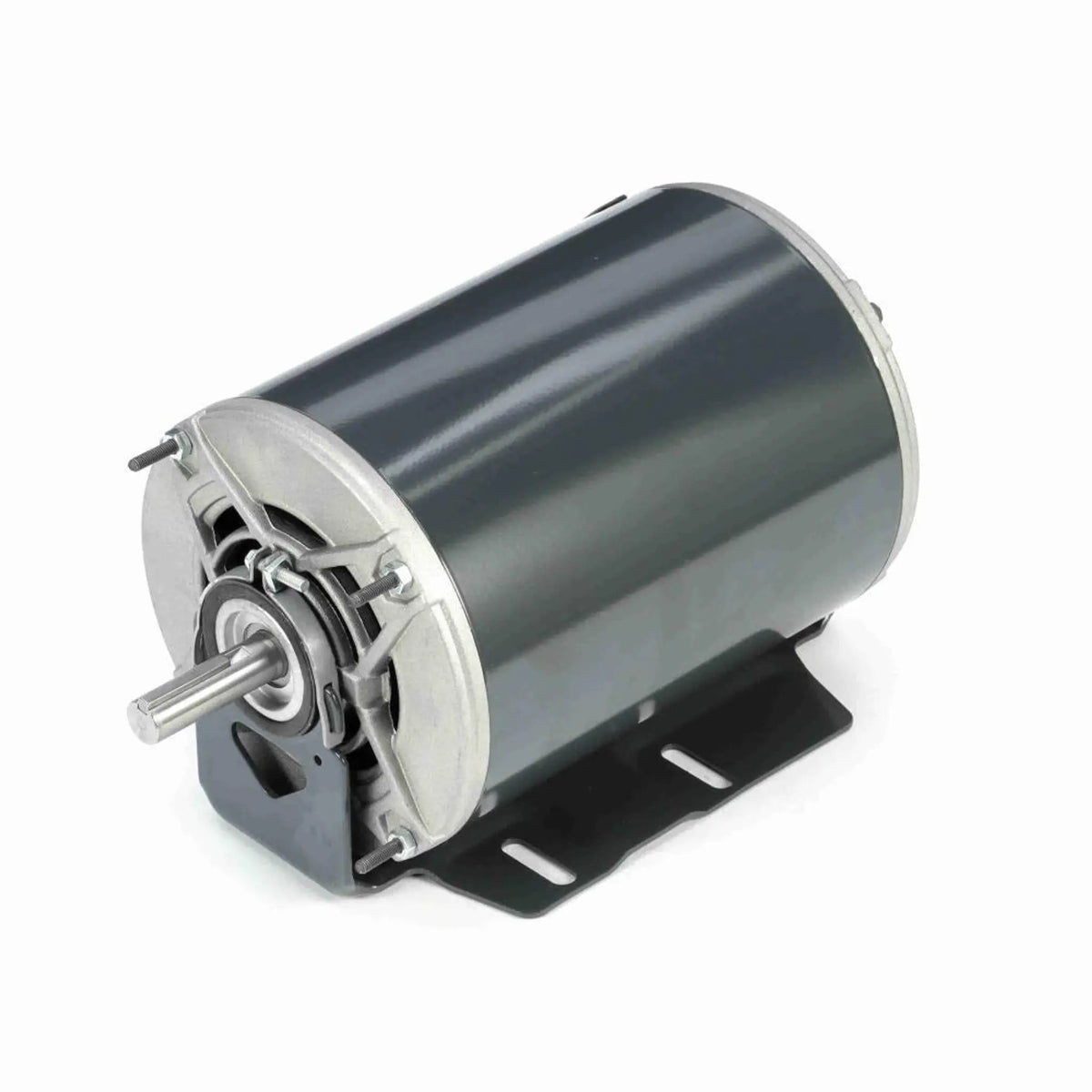

MH296 Marathon Fan & Blower Motor, 1/4 HP, 850 RPM, 115 V, Single Phase, 56 Frame, ODP
MH296 Marathon Fan & Blower Motor, 1/4 HP, 850 RPM, 115 V, Single Phase, 56 Frame, ODP
Regular price
$910.95 USD
Regular price
Sale price
$910.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MH296 is a new-in-box Fan & Blower Motor from Marathon. Manufacturer model H296. Designed for Fan and Blower.
Specifications
| Manufacturer Part Number | H296 |
|---|---|
| Catalog / Order Number | MH296 |
| Product Type | Fan & Blower Motor |
| Horsepower | 1/4 HP |
| Rated RPM | 850 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full Load Amps | 6.9 A |
| Service Factor | 1.25 |
| Overload Protection | N/R |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in Thru-bolts Extension 0 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
