H221 Marathon HVAC Motor - 1/2 HP - 1140 RPM - 115 V - Drip Proof
H221 Marathon HVAC Motor - 1/2 HP - 1140 RPM - 115 V - Drip Proof
Regular price
$746.95 USD
Regular price
Sale price
$746.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

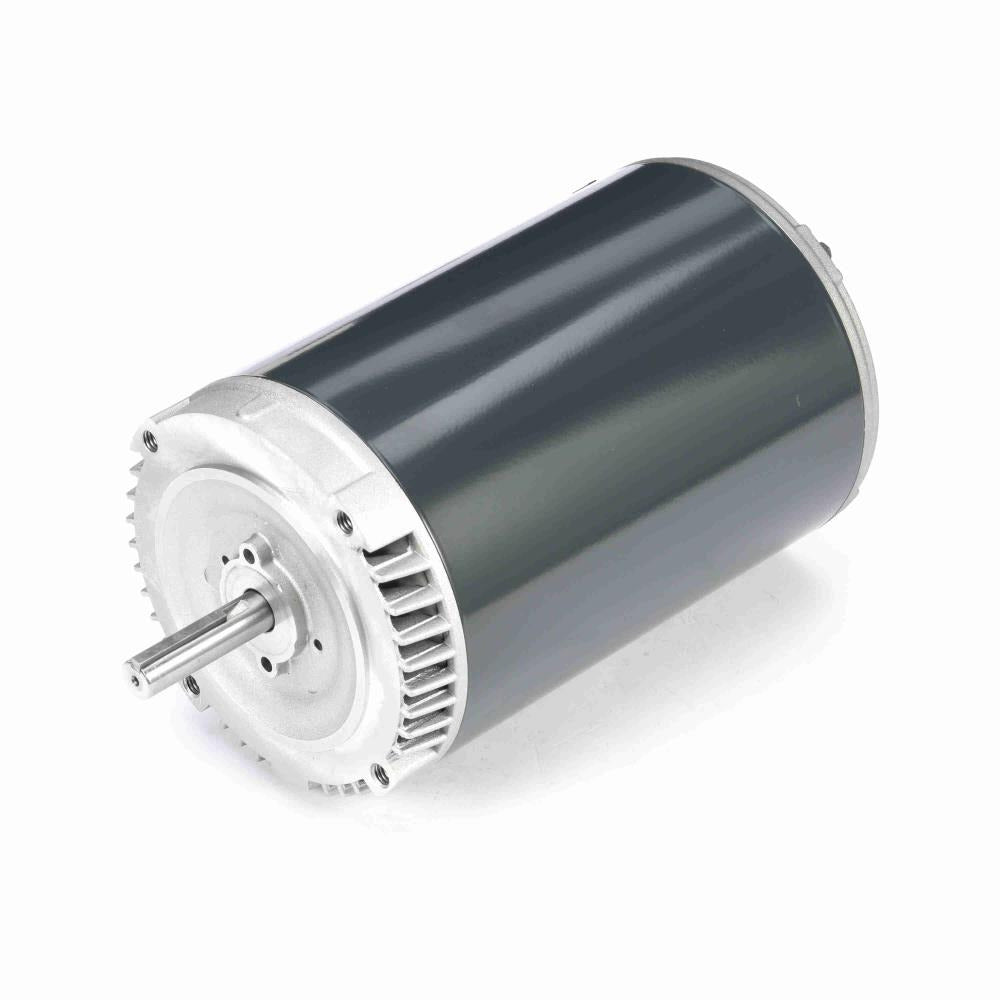

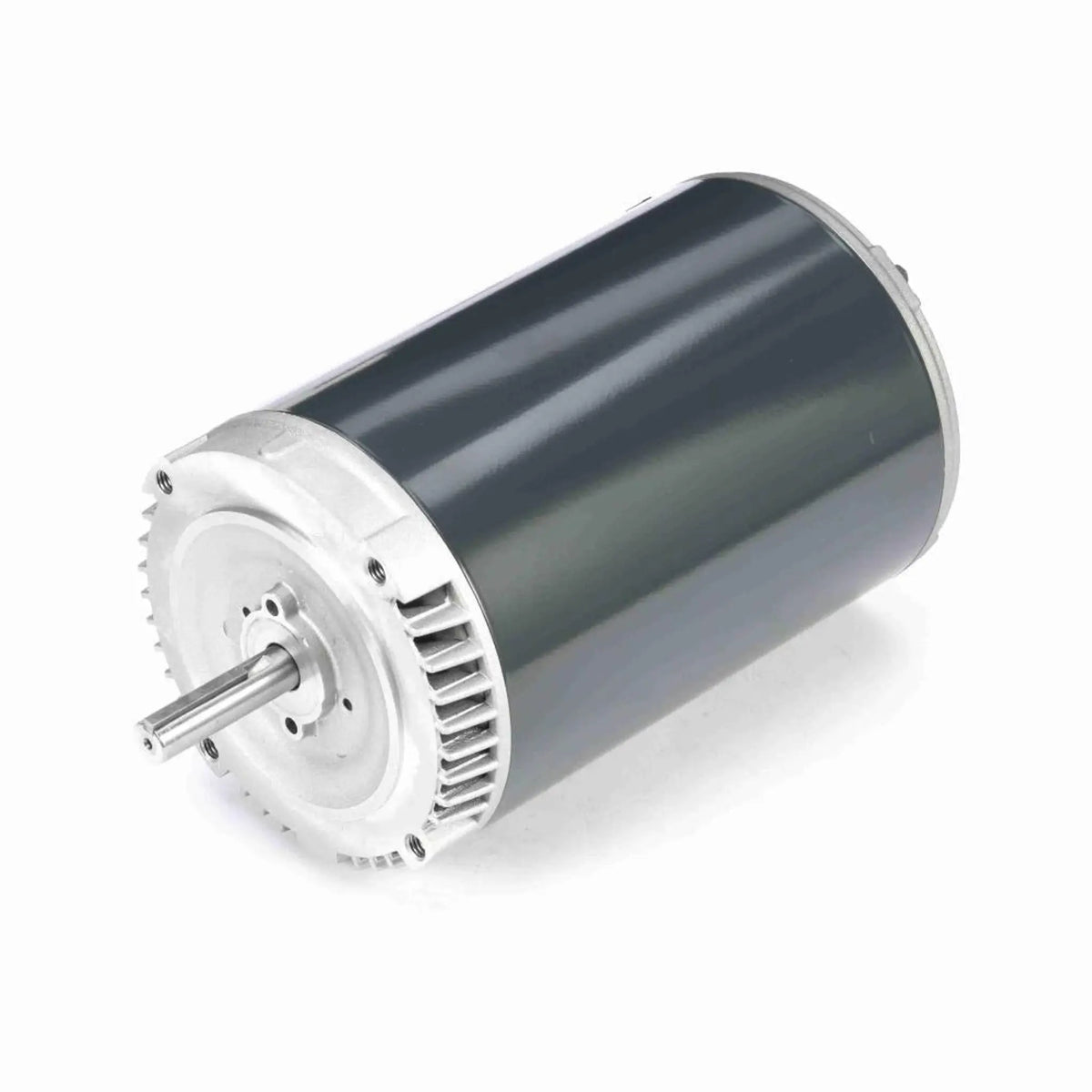

H221 is a new-in-box HVAC Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | H221 |
|---|---|
| Manufacturer Model | 5KH48UN6074 |
| Stu's / Vendor SKU | MH221 |
Specifications
| Horsepower | 1/2 HP |
|---|---|
| kW | 0.37 kW |
| Rated RPM | 1140 RPM |
| Voltage | 115 V |
| Frequency | 60 Hz |
| Electrical Type | Split |
| Full-Load Amps | 9 A |
| Service Factor | 1.25 |
| Overload Protection | N/R |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 62 % |
| Enclosure | Drip Proof |
| Mounting | Round |
| Shaft Details | Diameter 0.630 in; Extension 2.25 in Thru-bolts Extension 0 in |
| Rotation | Counterclockwise/Clockwise |
| Bearings | BALL / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
