MH203 Marathon Farm Duty Motor, 1/4-1/12 HP, 1800/1800 RPM, 115 V, Single Phase, 48 Frame, TENV
MH203 Marathon Farm Duty Motor, 1/4-1/12 HP, 1800/1800 RPM, 115 V, Single Phase, 48 Frame, TENV
Regular price
$315.95 USD
Regular price
Sale price
$315.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

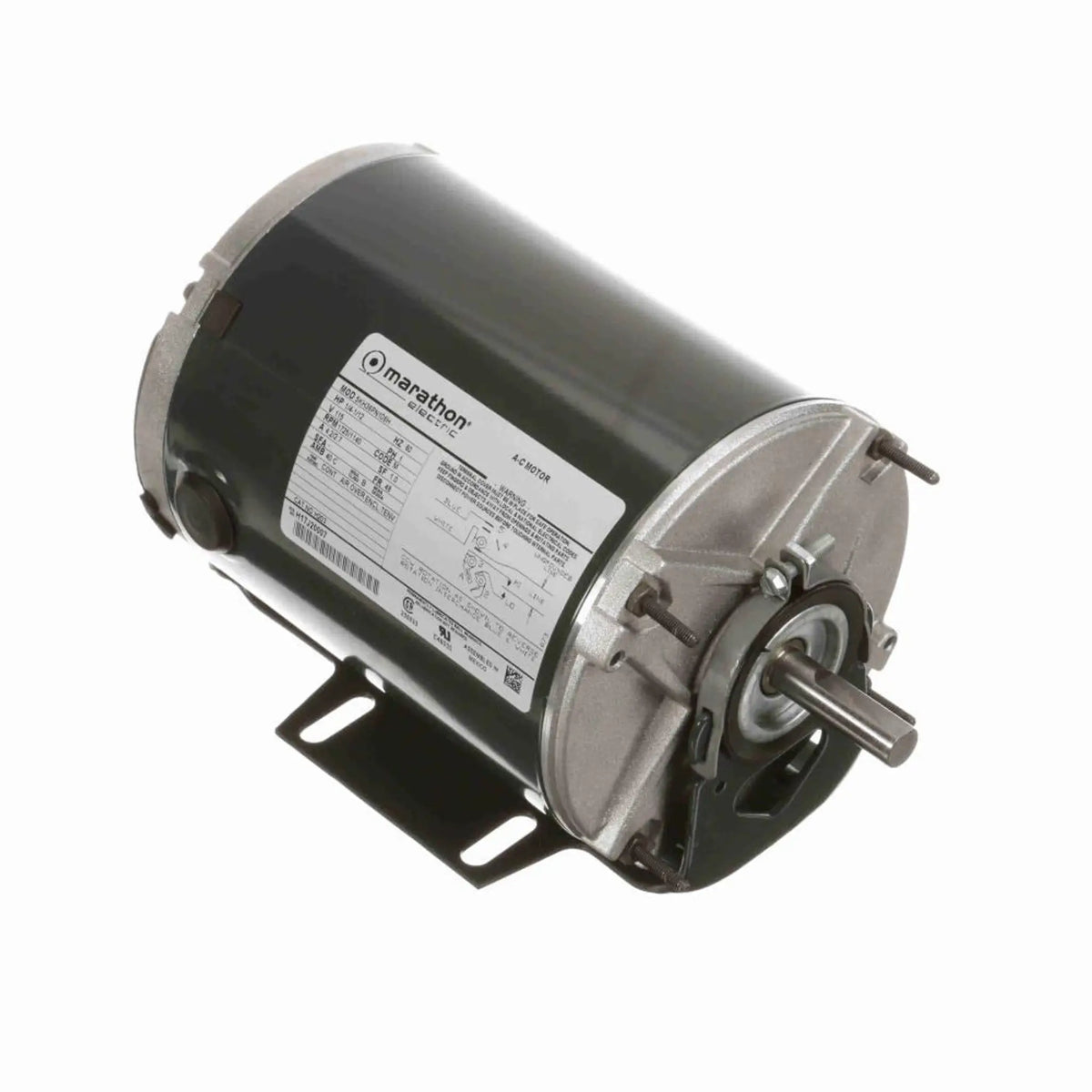

MH203 is a new-in-box Farm Duty Motor from Marathon. Manufacturer model H203. Designed for General Purpose.
Specifications
| Manufacturer Part Number | H203 |
|---|---|
| Catalog / Order Number | MH203 |
| Product Type | Farm Duty Motor |
| Horsepower | 1/4-1/12 HP |
| Rated RPM | 1800/1800 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full Load Amps | 4.2,2.7 A |
| Service Factor | 1 |
| Overload Protection | N/R |
| Duty Rating | Motor, 1 |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 48 |
| Enclosure | TENV |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.500 in; Extension 1.5 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
