Marathon

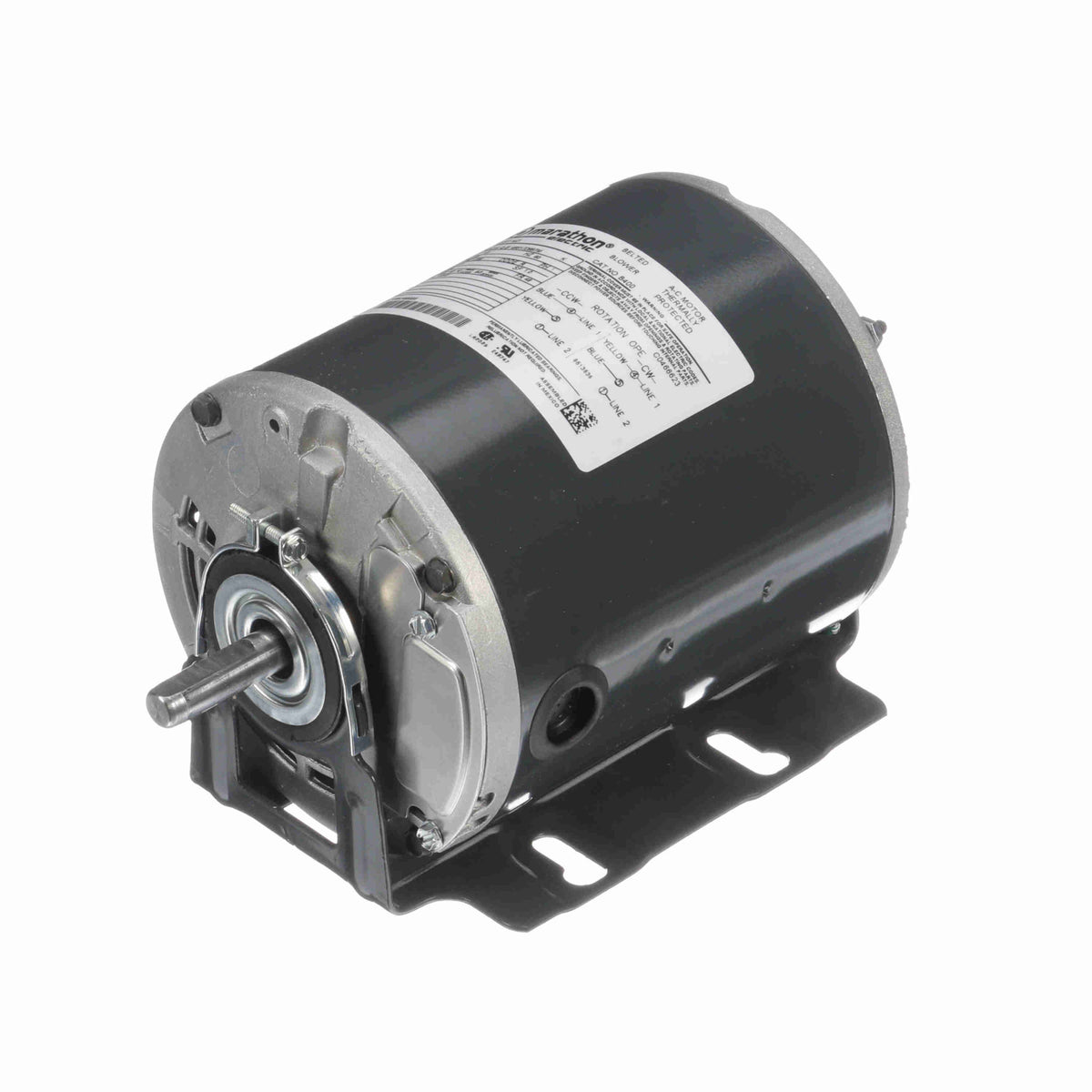

B400 Marathon HVAC Motor - 1/3 HP - 1725 RPM - 115 V - Drip Proof Air Over
B400 Marathon HVAC Motor - 1/3 HP - 1725 RPM - 115 V - Drip Proof Air Over
Regular price
$268.95 USD
Regular price
Sale price
$268.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
B400 is a new-in-box HVAC Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | B400 |
|---|---|
| Manufacturer Model | 048S17D997 |
| Stu's / Vendor SKU | MB400 |
Specifications
| Horsepower | 1/3 HP |
|---|---|
| kW | 0.25 kW |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Frequency | 60 Hz |
| Electrical Type | Split |
| Full-Load Amps | 6.6 A |
| Service Factor | 1 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 61.5 % |
| Enclosure | Drip Proof Air Over |
| Mounting | F1 Only |
| Shaft Configuration | NEMA 48 |
| Shaft Details | Diameter 0.500 in; Extension 1.59 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
