Marathon

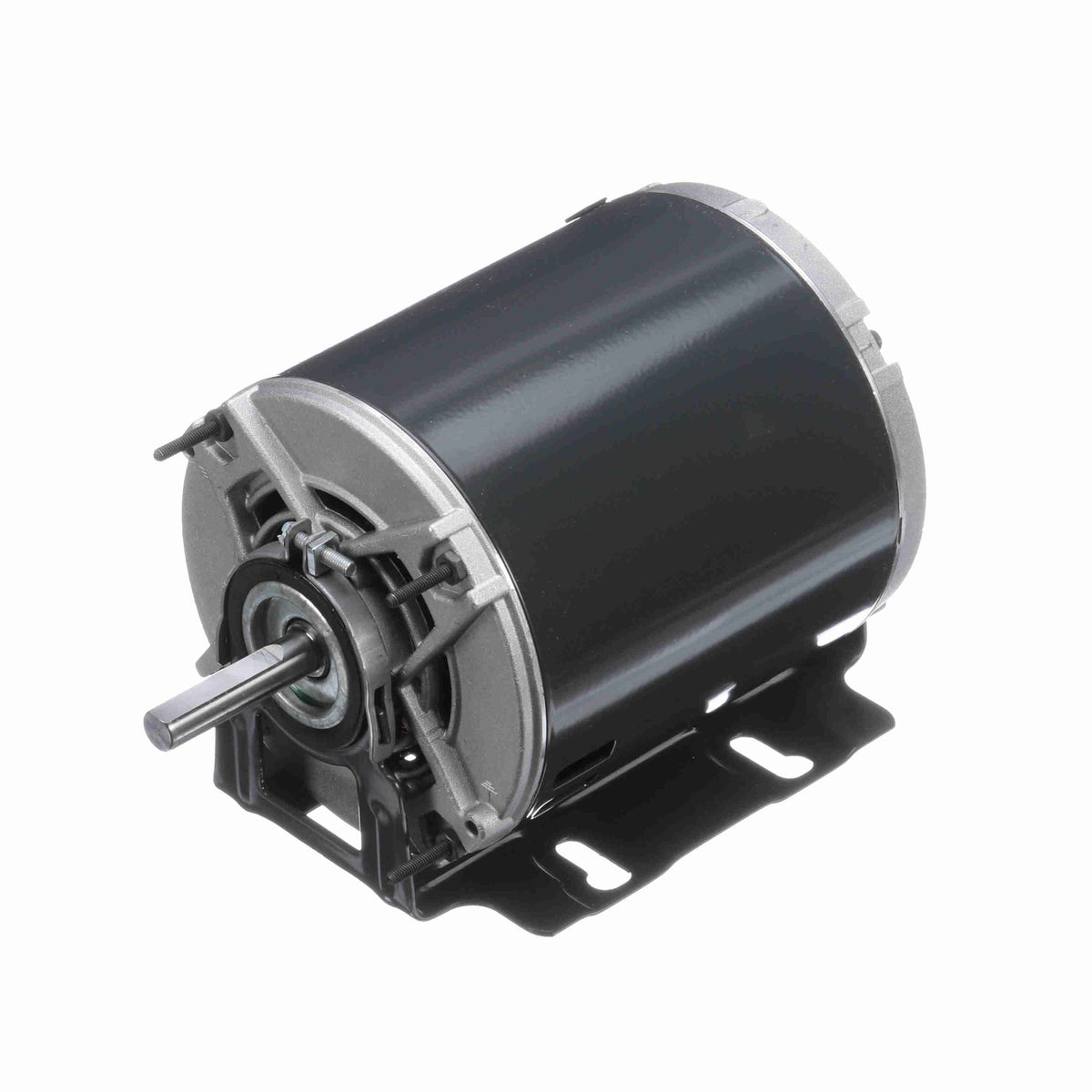

MB303 Marathon Fan & Blower Motor, 1/4 HP, 1725 RPM, 115 V, Single Phase, 48Y Frame, ODP
MB303 Marathon Fan & Blower Motor, 1/4 HP, 1725 RPM, 115 V, Single Phase, 48Y Frame, ODP
Regular price
$218.95 USD
Regular price
Sale price
$218.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MB303 is a new-in-box Fan & Blower Motor from Marathon. Manufacturer model B303. Designed for Fan and Blower.
Specifications
| Manufacturer Part Number | B303 |
|---|---|
| Catalog / Order Number | MB303 |
| Product Type | Fan & Blower Motor |
| Horsepower | 1/4 HP |
| Rated RPM | 1725 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split Phase |
| Full Load Amps | 5.0 A |
| Service Factor | 1.35 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 48Y |
| Enclosure | ODP |
| Mounting | F1 ONLY |
| Shaft Configuration | Single Special Extension |
| Shaft Details | Diameter 0.500 in; Extension 1.87 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
