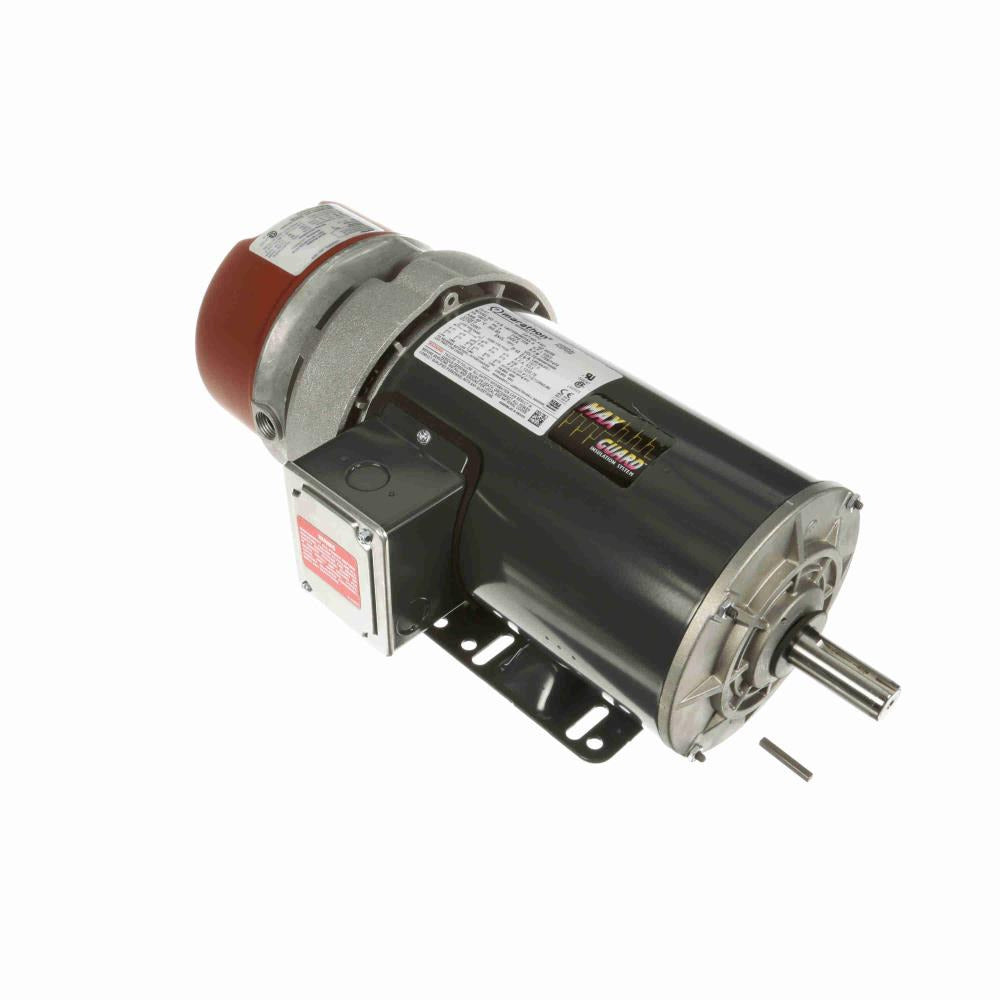

K441 Marathon Brake Motor - 1.5 HP - 1755 RPM - 230/460 V - Totally Enclosed Fan Cooled
K441 Marathon Brake Motor - 1.5 HP - 1755 RPM - 230/460 V - Totally Enclosed Fan Cooled
Regular price
$346.95 USD
Regular price
Sale price
$346.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
K441 is a new-in-box Brake Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | K441 |
|---|---|
| Manufacturer Model | 145TTFR16431 |
| Stu's / Vendor SKU | MK441 |
Specifications
| Horsepower | 1.5 HP |
|---|---|
| kW | 1.1 kW |
| Rated RPM | 1755 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Induction Run |
| Full-Load Amps | 4.6/2.3 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Frame | 145T |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.875 in; Extension 2.25 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
