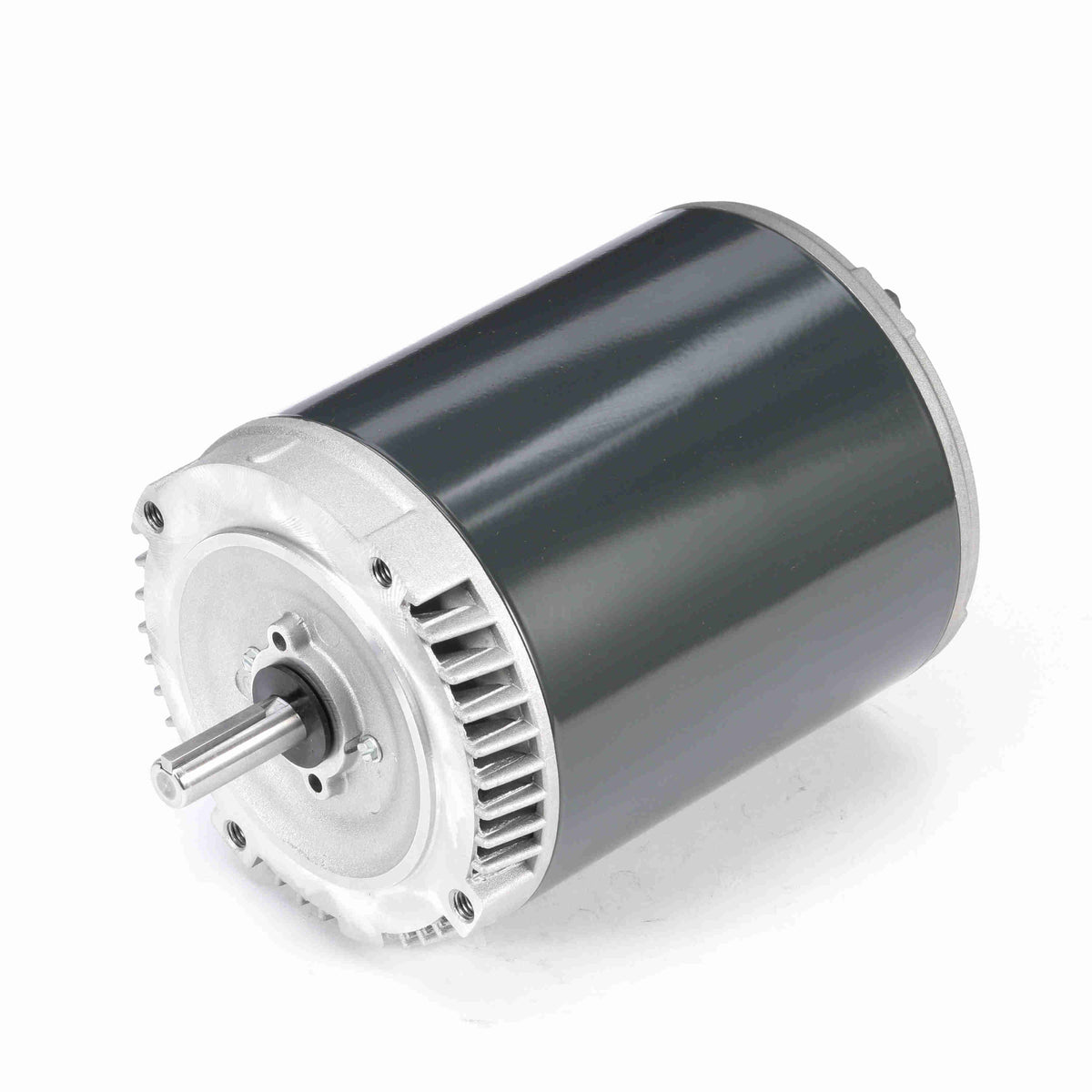

MK222 Marathon Fan & Blower Motor, 1-1/2 HP, 3450 RPM, 208-230/460 V, Three Phase, 56C Frame, ODP
MK222 Marathon Fan & Blower Motor, 1-1/2 HP, 3450 RPM, 208-230/460 V, Three Phase, 56C Frame, ODP
Regular price
$457.95 USD
Regular price
Sale price
$457.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MK222 is a new-in-box Fan & Blower Motor from Marathon. Manufacturer model K222. Designed for Fan and Blower.
Specifications
| Manufacturer Part Number | K222 |
|---|---|
| Catalog / Order Number | MK222 |
| Product Type | Fan & Blower Motor |
| Horsepower | 1-1/2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full Load Amps | 5.0-4.8,2.4 A |
| Service Factor | 1.3 |
| Overload Protection | No Protection |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | Round |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in Thru-bolts Extension 0 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
