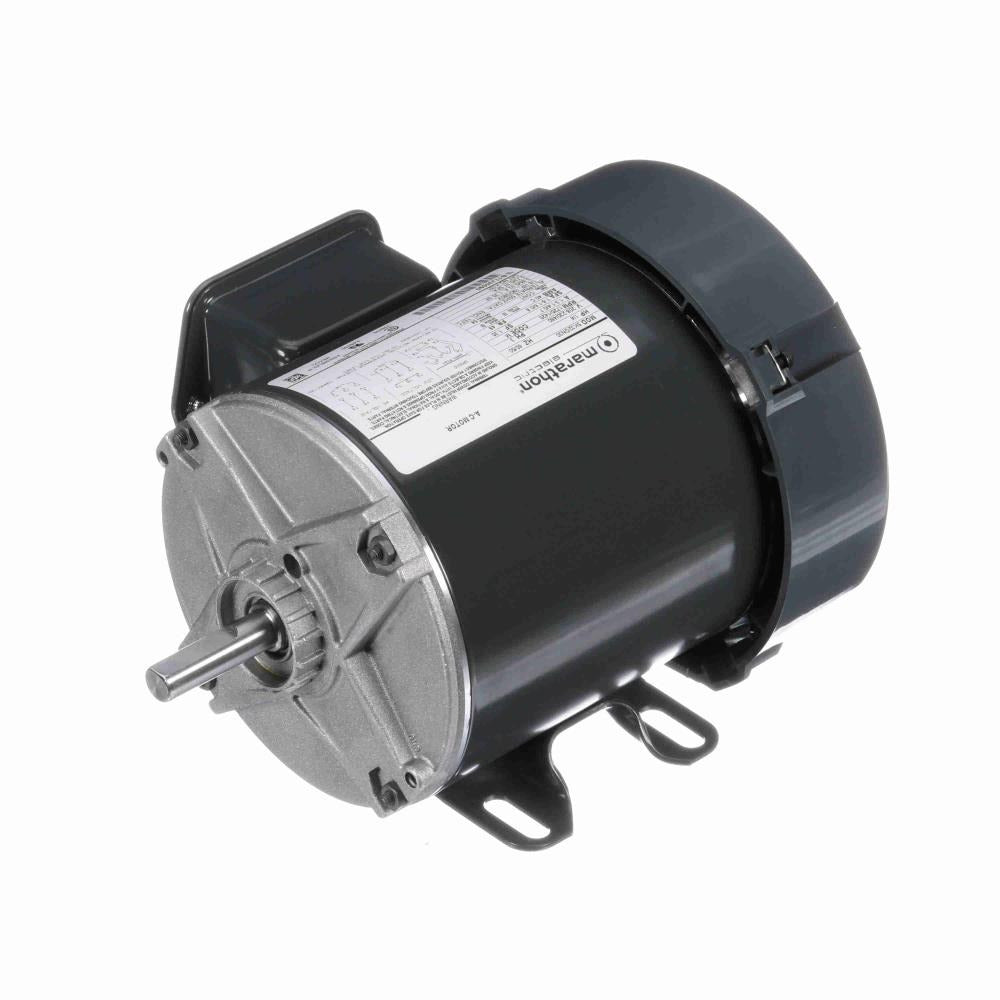

MK151 Marathon General Purpose Motor, 1/4 HP, 1725 RPM, 208-230/460 V, Three Phase, 48 Frame, TEFC
MK151 Marathon General Purpose Motor, 1/4 HP, 1725 RPM, 208-230/460 V, Three Phase, 48 Frame, TEFC
Regular price
$366.95 USD
Regular price
Sale price
$366.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MK151 is a new-in-box General Purpose Motor from Marathon. Manufacturer model K151. Designed for General Purpose.
Specifications
| Manufacturer Part Number | K151 |
|---|---|
| Catalog / Order Number | MK151 |
| Product Type | General Purpose Motor |
| Horsepower | 1/4 HP |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full Load Amps | 1.3-1.4,0.7 A |
| Service Factor | 1.35 |
| Overload Protection | N/R |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 48 |
| Enclosure | TEFC |
| Mounting | Rigid Base |
| Shaft Details | Diameter 0.500 in; Extension 1.5 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
