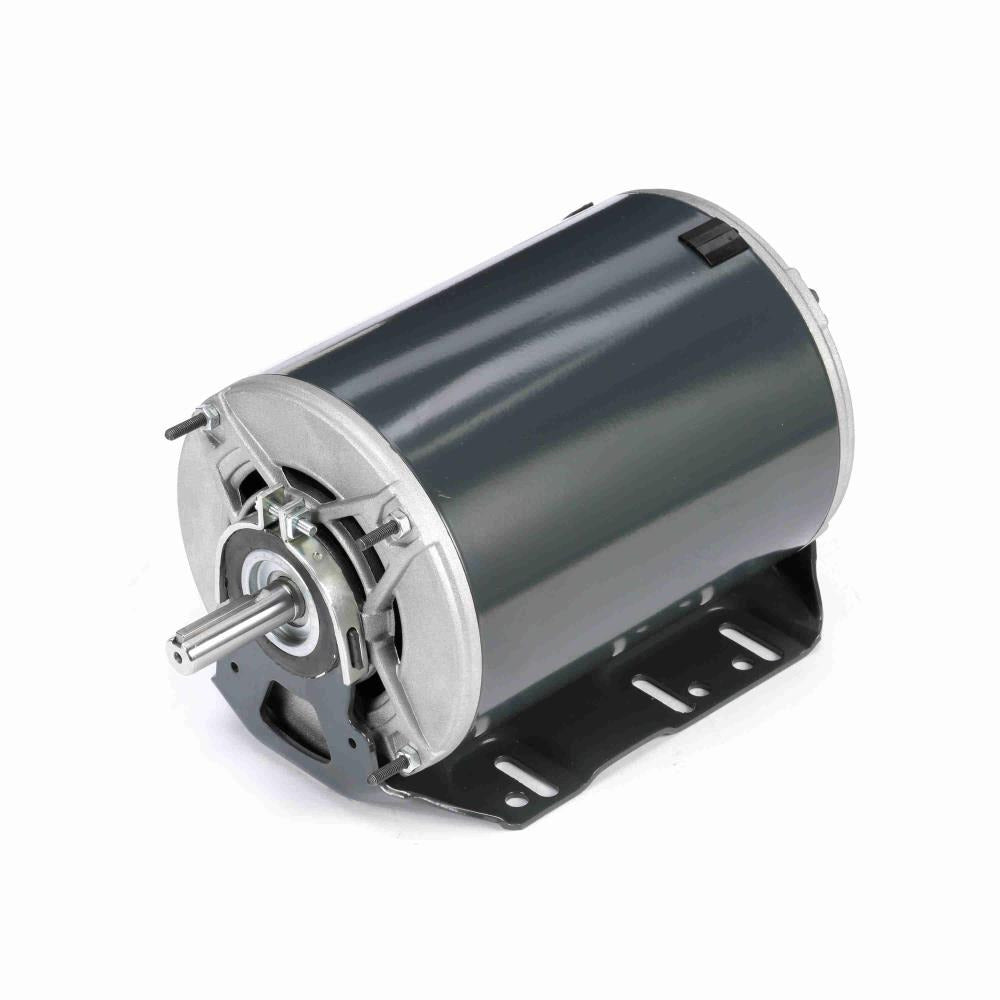

MK1416 Marathon Fan & Blower Motor, 2 HP, 3450 RPM, 208-230/460 V, Three Phase, 56H Frame, ODP
MK1416 Marathon Fan & Blower Motor, 2 HP, 3450 RPM, 208-230/460 V, Three Phase, 56H Frame, ODP
Regular price
$484.95 USD
Regular price
Sale price
$484.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MK1416 is a new-in-box Fan & Blower Motor from Marathon. Manufacturer model K1416. Designed for Fan and Blower.
Specifications
| Manufacturer Part Number | K1416 |
|---|---|
| Catalog / Order Number | MK1416 |
| Product Type | Fan & Blower Motor |
| Horsepower | 2 HP |
| Rated RPM | 3450 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full Load Amps | 6.0-6.0,3.0 A |
| Service Factor | 1.15 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56H |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in Thru-bolts Extension 0 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
