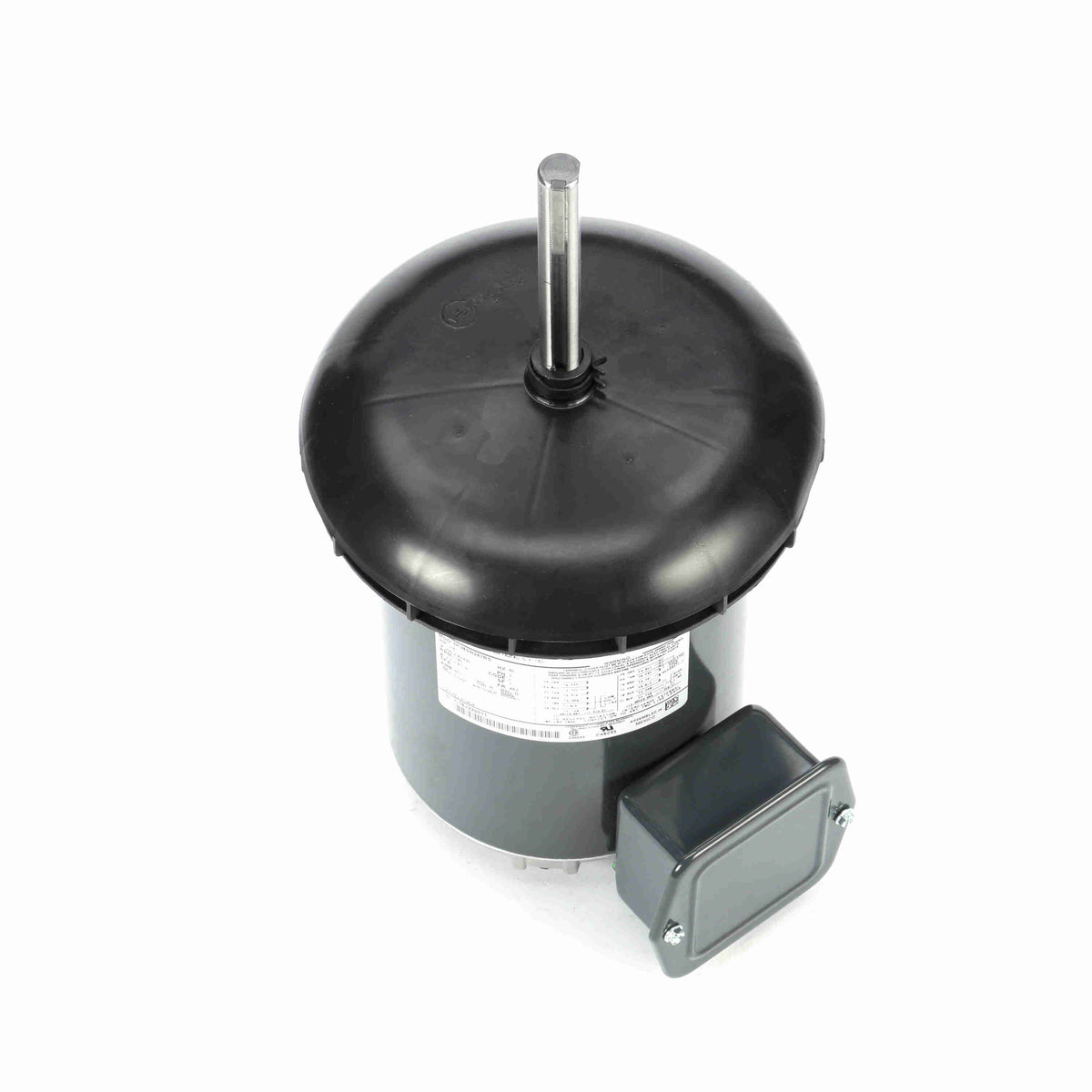

K1404 Marathon Condenser Fan Motor - 3/4 HP - 1140 RPM - 200-230/460 V - Open Enclosed
K1404 Marathon Condenser Fan Motor - 3/4 HP - 1140 RPM - 200-230/460 V - Open Enclosed
Regular price
$127.95 USD
Regular price
Sale price
$127.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
K1404 is a new-in-box Condenser Fan Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | K1404 |
|---|---|
| Manufacturer Model | 5K38SN267S |
| Stu's / Vendor SKU | MK1404 |
Specifications
| Horsepower | 3/4 HP |
|---|---|
| kW | 0.56 kW |
| Rated RPM | 1140 RPM |
| Voltage | 200-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three |
| Service Factor | 1 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient Rating | 65 °C |
| Insulation Class | B |
| Efficiency | 71.3 % |
| Speed Count | 1 |
| Frame | 48Z |
| Enclosure | Open Enclosed |
| Mounting | Round |
| Shaft Details | Diameter 0.630 in; Extension 5.22 in Thru-bolts Extension 0 in |
| Rotation | Counterclockwise/Clockwise |
| Bearings | BALL / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
