Marathon

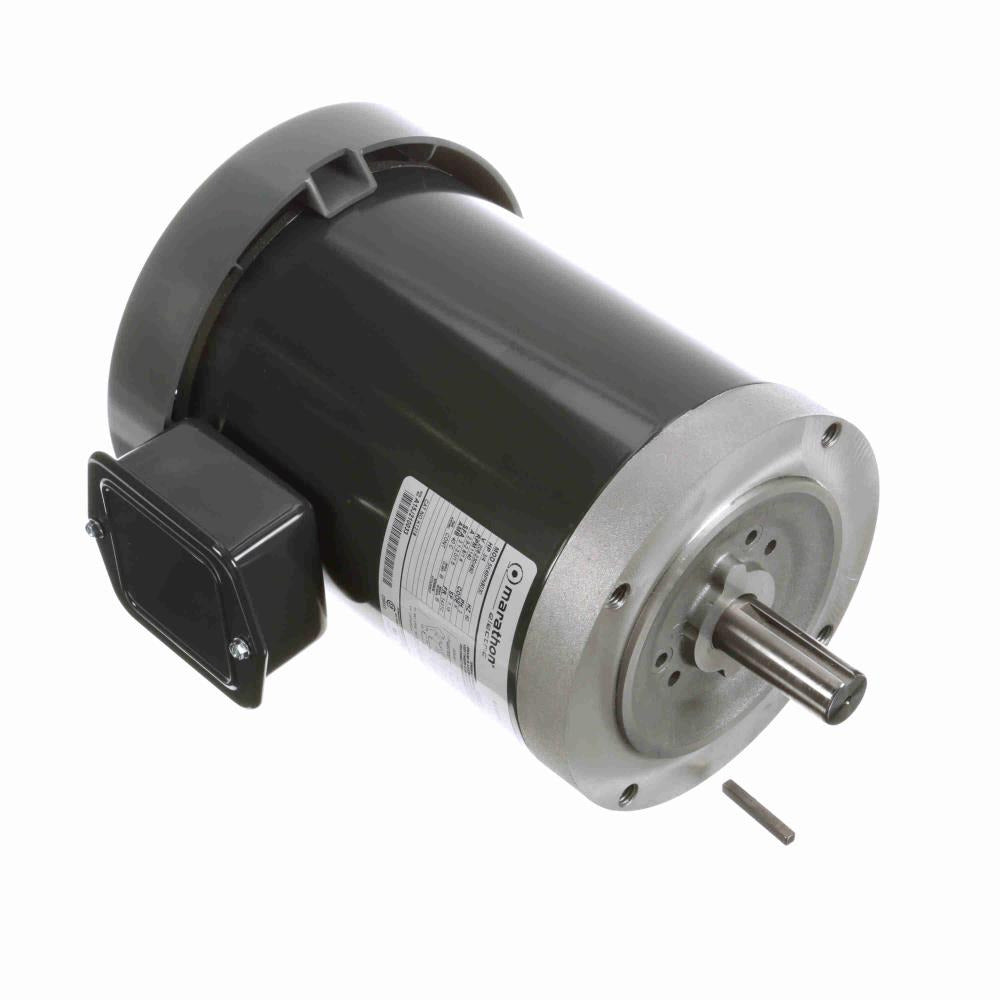

K1318 Marathon General Purpose Motor - 3/4 HP - 1140 RPM - 208-230/460 V - Totally Enclosed Fan Cooled
K1318 Marathon General Purpose Motor - 3/4 HP - 1140 RPM - 208-230/460 V - Totally Enclosed Fan Cooled
Regular price
$128.95 USD
Regular price
Sale price
$128.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
K1318 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | K1318 |
|---|---|
| Manufacturer Model | 5K49PN8030 |
| Stu's / Vendor SKU | MK1318 |
Specifications
| Horsepower | 3/4 HP |
|---|---|
| kW | 0.56 kW |
| Rated RPM | 1140 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three |
| Service Factor | 1.15 |
| Overload Protection | N/R |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 76.1 % |
| Speed Count | 1 |
| Frame | 143TC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Round |
| Shaft Details | Diameter 0.880 in; Extension 2 in |
| Rotation | Counterclockwise/Clockwise |
| Bearings | BALL / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
