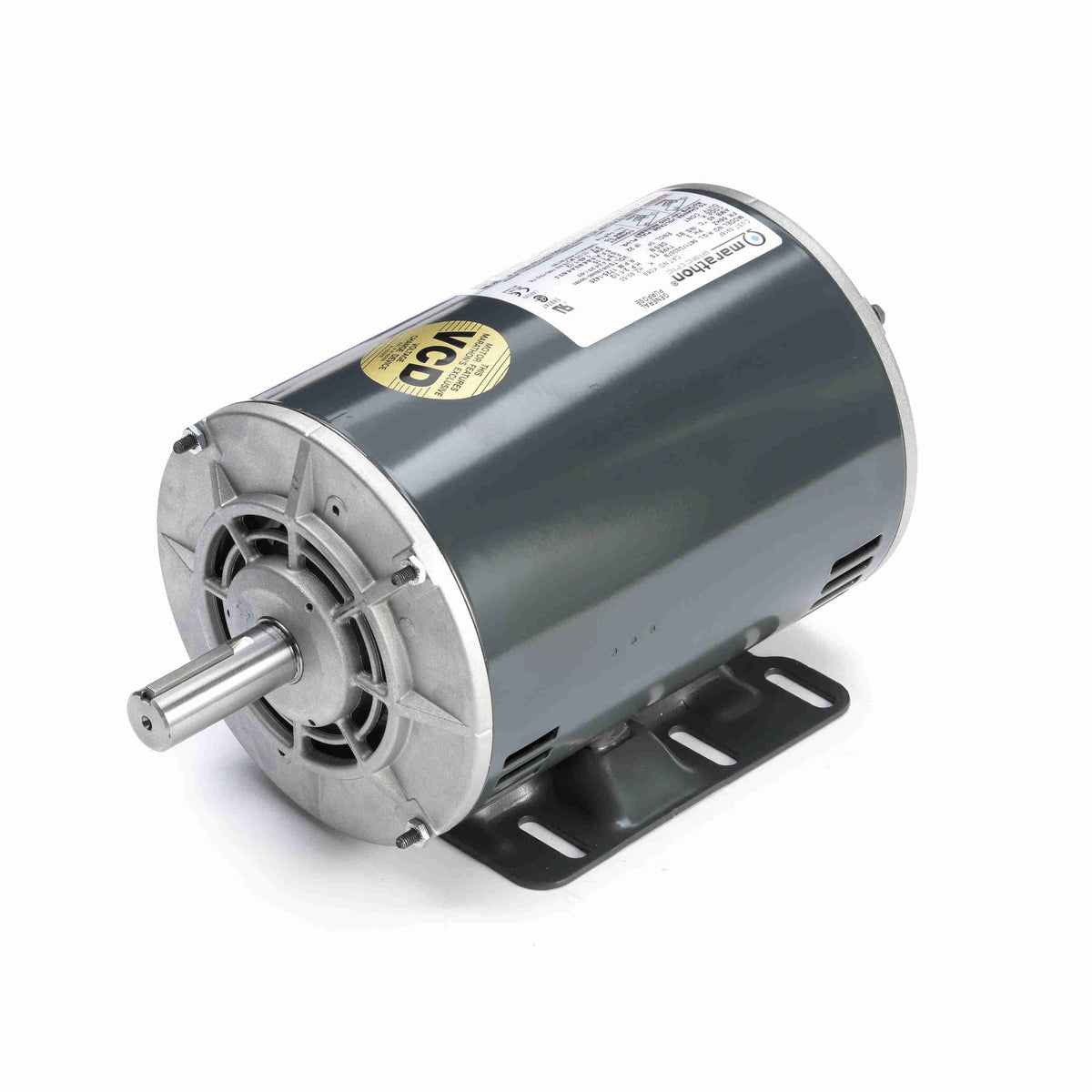

K069 Marathon General Purpose Motor - 2 HP - 1725 RPM - 208-230/460 V - Drip Proof Overload Protector Automatic
K069 Marathon General Purpose Motor - 2 HP - 1725 RPM - 208-230/460 V - Drip Proof Overload Protector Automatic
Regular price
$724.95 USD
Regular price
Sale price
$724.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
K069 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | K069 |
|---|---|
| Manufacturer Model | 056T17D3307 |
| Stu's / Vendor SKU | MK069 |
Specifications
| Horsepower | 2 HP |
|---|---|
| kW | 1.5 kW |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Induction Run |
| Full-Load Amps | 6.2-6.2/3.1 A |
| Service Factor | 1.15 |
| Duty Rating | Continous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 81.5 % |
| Frame | 56HZ |
| Enclosure | Drip Proof Overload Protector Automatic |
| Mounting | F1 Only |
| Shaft Configuration | NEMA 145T |
| Shaft Details | Diameter 0.625 in; Extension 2.28 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
