Marathon

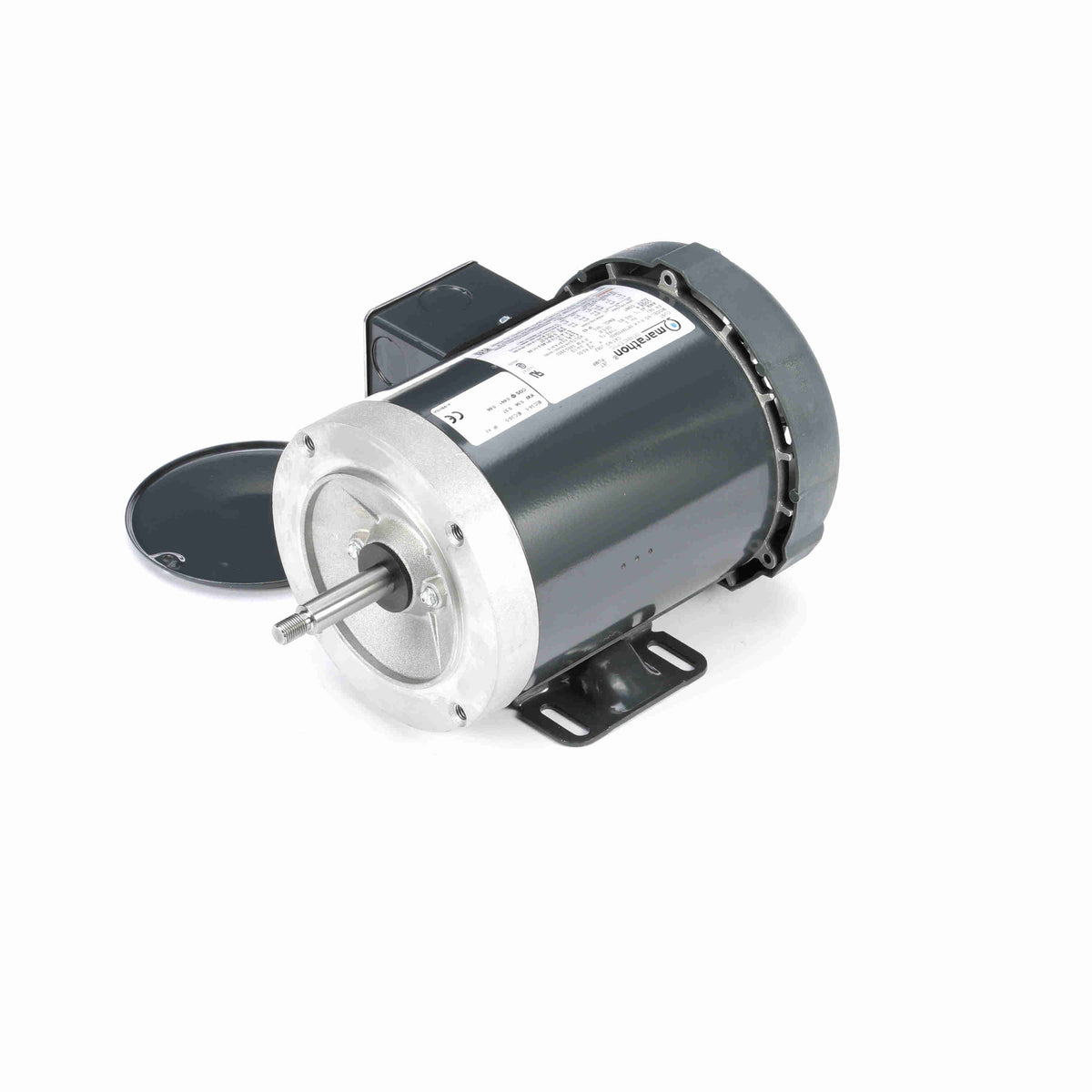

MJ062 Marathon Pump Motor, 3/4 HP, 3450 RPM, 208-230/460 V, Three Phase, 56J Frame, TEFC
MJ062 Marathon Pump Motor, 3/4 HP, 3450 RPM, 208-230/460 V, Three Phase, 56J Frame, TEFC
Regular price
$477.95 USD
Regular price
Sale price
$477.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MJ062 is a new-in-box Pump Motor from Marathon. Manufacturer model J062. Designed for General Purpose.
Specifications
| Manufacturer Part Number | J062 |
|---|---|
| Catalog / Order Number | MJ062 |
| Product Type | Pump Motor |
| Horsepower | 3/4 HP |
| Rated RPM | 3450 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Induction |
| Full Load Amps | 3.0-3.2/1.6 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56J |
| Enclosure | TEFC |
| Mounting | F1 ONLY |
| Shaft Configuration | J |
| Shaft Details | Diameter 0.625 in; Extension 2.57 in |
| Rotation | Reversible |
Specifications reflect the exact manufacturer source verified for this product.
