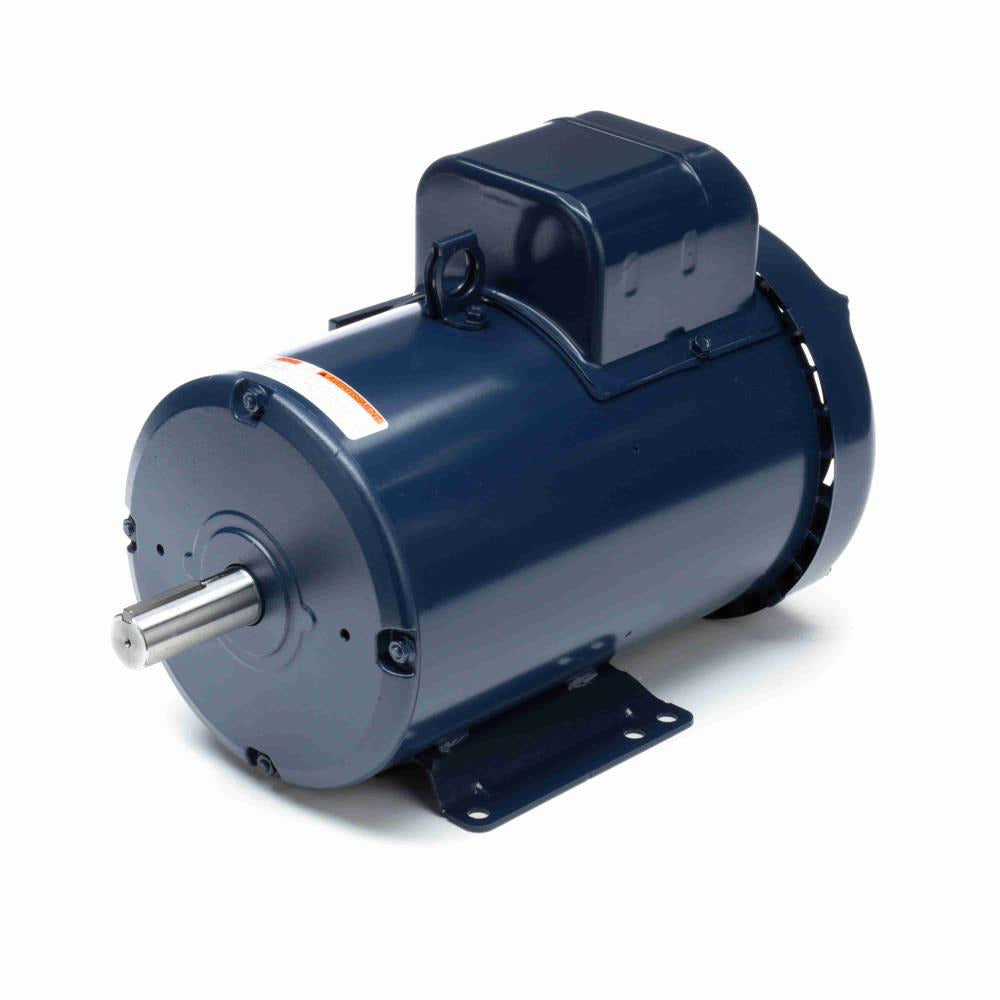

I223A Marathon General Purpose Motor - 5 HP - 3530 RPM - 208-230 V - TEFC
I223A Marathon General Purpose Motor - 5 HP - 3530 RPM - 208-230 V - TEFC
Regular price
$1,011.95 USD
Regular price
Sale price
$1,011.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
I223A is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | I223A |
|---|---|
| Manufacturer Model | 184TBFW7701 |
| Stu's / Vendor SKU | MI223A |
Specifications
| Horsepower | 5 HP |
|---|---|
| kW | 3.7 kW |
| Rated RPM | 3530 RPM |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 22.5-19.8 A |
| Service Factor | 1.0 |
| Overload Protection | NOT |
| Duty Rating | CONTINUOUS |
| Ambient Rating | 40 °C |
| Insulation Class | F4 |
| Efficiency | 82.5 % |
| Speed Count | 1 |
| Enclosure | TEFC |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 1 1/8 in; Extension 2.81 in |
| Rotation | SELECTIVE CCW |
| Bearings | BALL / BALL |
| Material | ROLLED STEEL |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
