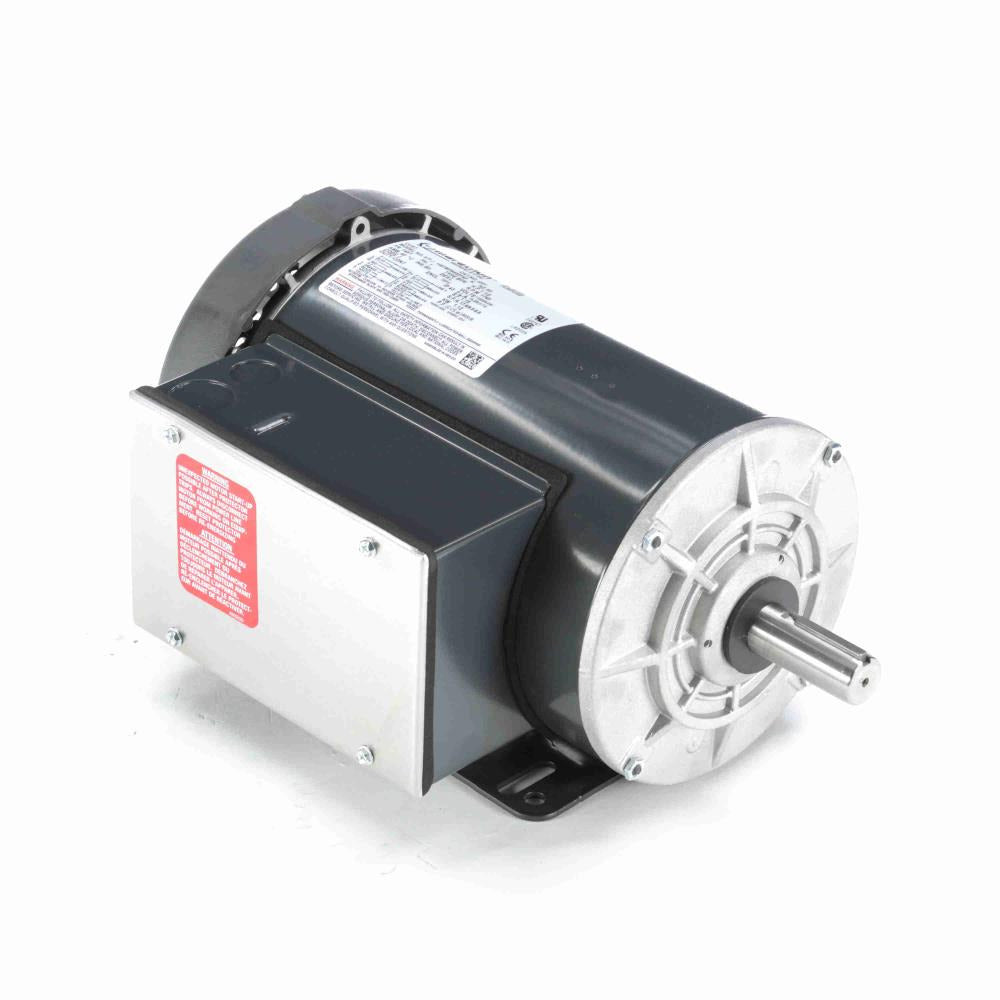

I201 Marathon General Purpose Motor - 1.5 HP - 1740 RPM - 115/208-230 V - Totally Enclosed Fan Cooled
I201 Marathon General Purpose Motor - 1.5 HP - 1740 RPM - 115/208-230 V - Totally Enclosed Fan Cooled
Regular price
$589.95 USD
Regular price
Sale price
$589.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
I201 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | I201 |
|---|---|
| Manufacturer Model | 145TBFR5327 |
| Stu's / Vendor SKU | MI201 |
Specifications
| Horsepower | 1.5 HP |
|---|---|
| kW | 1.1 kW |
| Rated RPM | 1740 RPM |
| Voltage | 115/208-230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 15.2/8.2-7.6 A |
| Service Factor | 1.15 |
| Overload Protection | Manual |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 80 % |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.875 in; Extension 2.28 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
