US Motors / Nidec

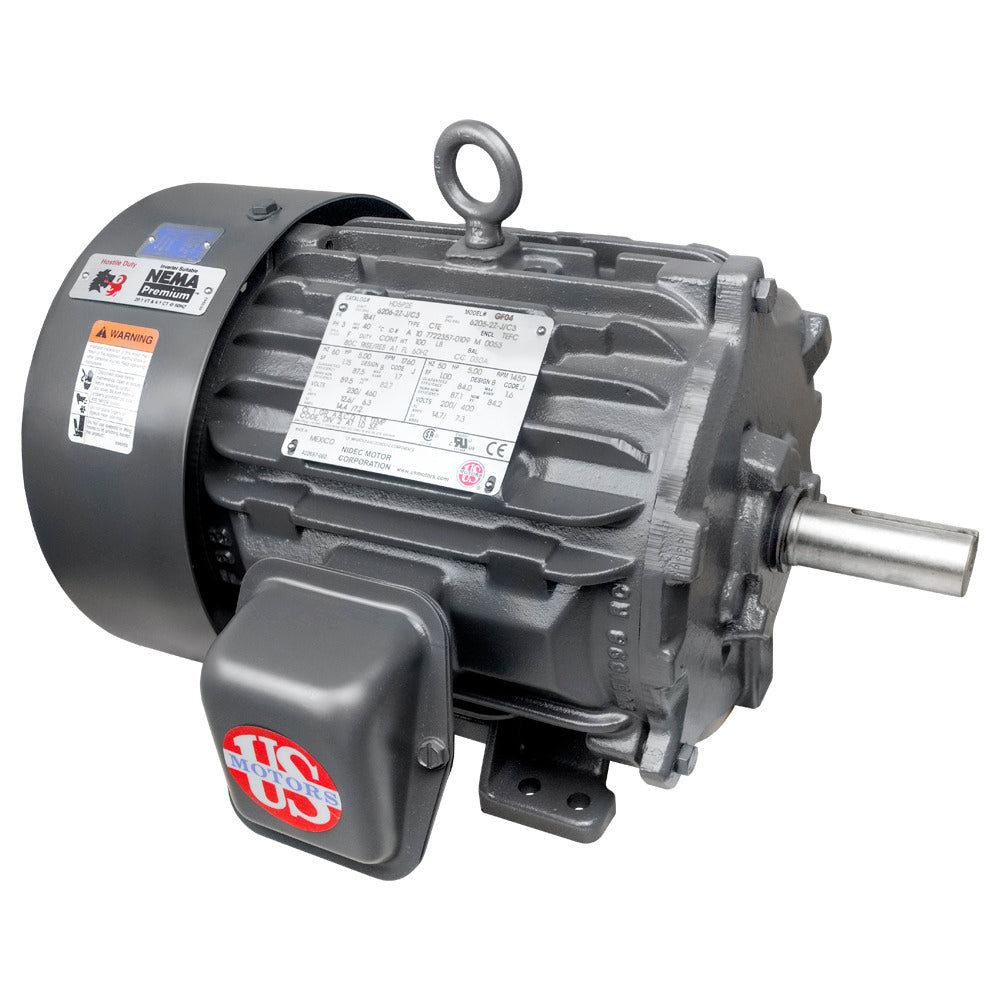

HD3P2H US Motors / Nidec HOSTILE DUTY Motor - 3 HP - 1770 RPM - 200 V - TEFC-IP54
HD3P2H US Motors / Nidec HOSTILE DUTY Motor - 3 HP - 1770 RPM - 200 V - TEFC-IP54
Regular price
$508.95 USD
Regular price
Sale price
$508.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HD3P2H is a new-in-box HOSTILE DUTY Motor from US Motors / Nidec. Designed for harsh industrial service including pulp and paper, sawmills, mines, foundries, chemical plants, and waste-management equipment.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1770 RPM |
| Voltage | 200 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 8.8/8.6 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Speed Count | 1 |
| Frame | 182T |
| Enclosure | TEFC-IP54 |
| Mounting | Rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Cast-iron frame |
| C Dimension | 16.3 in |
| Length | 16.3 in |
| Ship Weight | 90 lb |
| Country of Origin | MEX |
