US Motors / Nidec

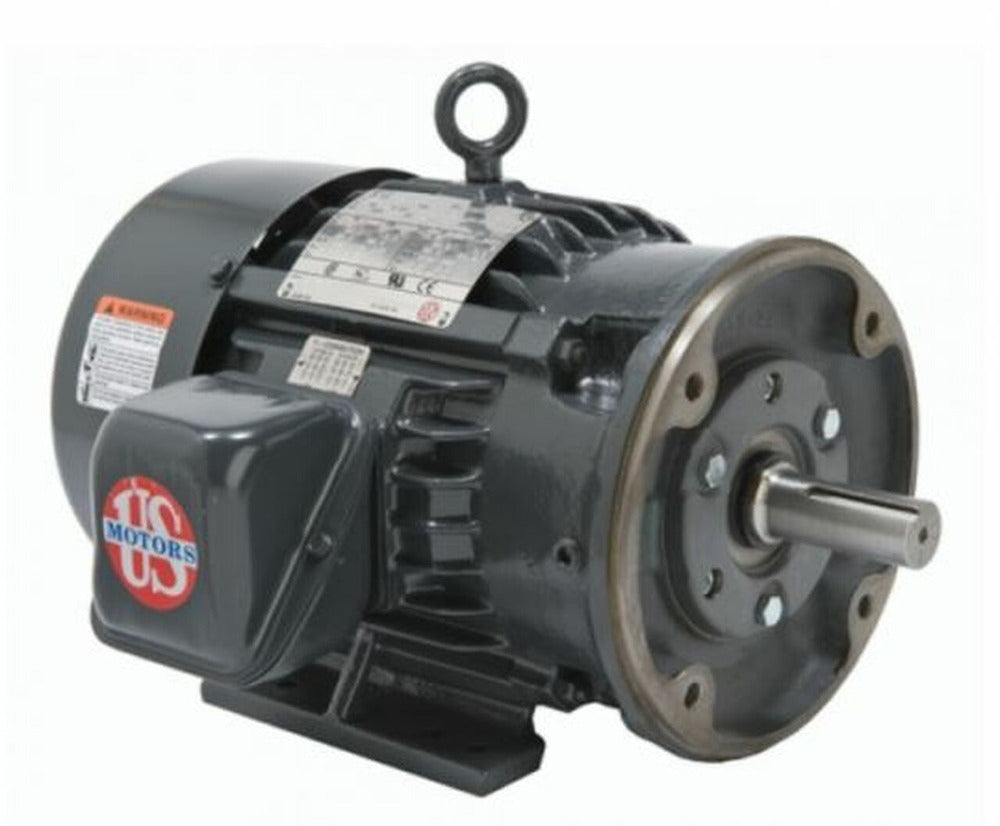

HD3P2EC US Motors / Nidec HOSTILE DUTY Motor - 3 HP - 1770 RPM - 230/460 V - TEFC
HD3P2EC US Motors / Nidec HOSTILE DUTY Motor - 3 HP - 1770 RPM - 230/460 V - TEFC
Regular price
$620.95 USD
Regular price
Sale price
$620.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HD3P2EC is a new-in-box HOSTILE DUTY Motor from US Motors / Nidec. Designed for harsh industrial and process-plant applications.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1770 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 7.8/3.9 A |
| Service Factor | 1.15 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Hazardous Location Rating | Self-certified Class I, Division 2, Groups A-D |
| Speed Count | 1 |
| Frame | 182TC |
| Enclosure | TEFC |
| Mounting | Horizontal footed, C-face, F1 |
| Shaft Details | Manufacturer shaft code TC |
| Rotation | Reversible |
| Bearings | Not available from manufacturer |
| Material | Cast Iron |
| C Dimension | 17.1 in |
| Ship Weight | 100 lb |
| Country of Origin | MEX |
