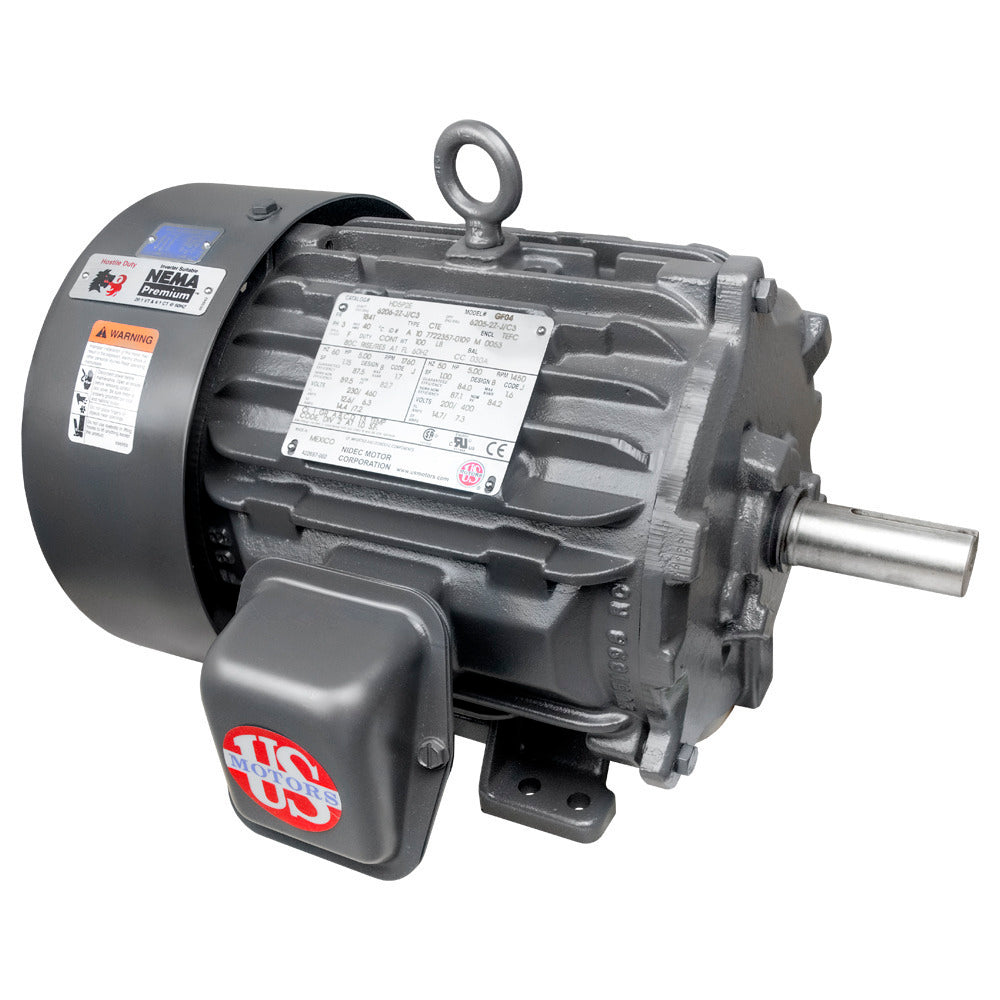

HD3P2E US Motors / Nidec HOSTILE DUTY Motor - 3 HP - 1770 RPM - 208-230/460 V - TEFC-IP54
HD3P2E US Motors / Nidec HOSTILE DUTY Motor - 3 HP - 1770 RPM - 208-230/460 V - TEFC-IP54
Regular price
$508.95 USD
Regular price
Sale price
$508.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HD3P2E is a new-in-box HOSTILE DUTY Motor from US Motors / Nidec. Designed for hostile-duty general-purpose industrial applications.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1770 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 8.5-7.8/3.9 A |
| Service Factor | 1.25 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 89.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 182T |
| Enclosure | TEFC-IP54 |
| Mounting | Horizontal footed, F1 |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | DE 6206-2Z-J/C3; ODE 6205-2Z-J/C3 |
| Material | Cast Iron |
| Length | 44 in |
| Width | 32 in |
| Height | 21 in |
| Ship Weight | 90 lb |
| Country of Origin | MEX |
