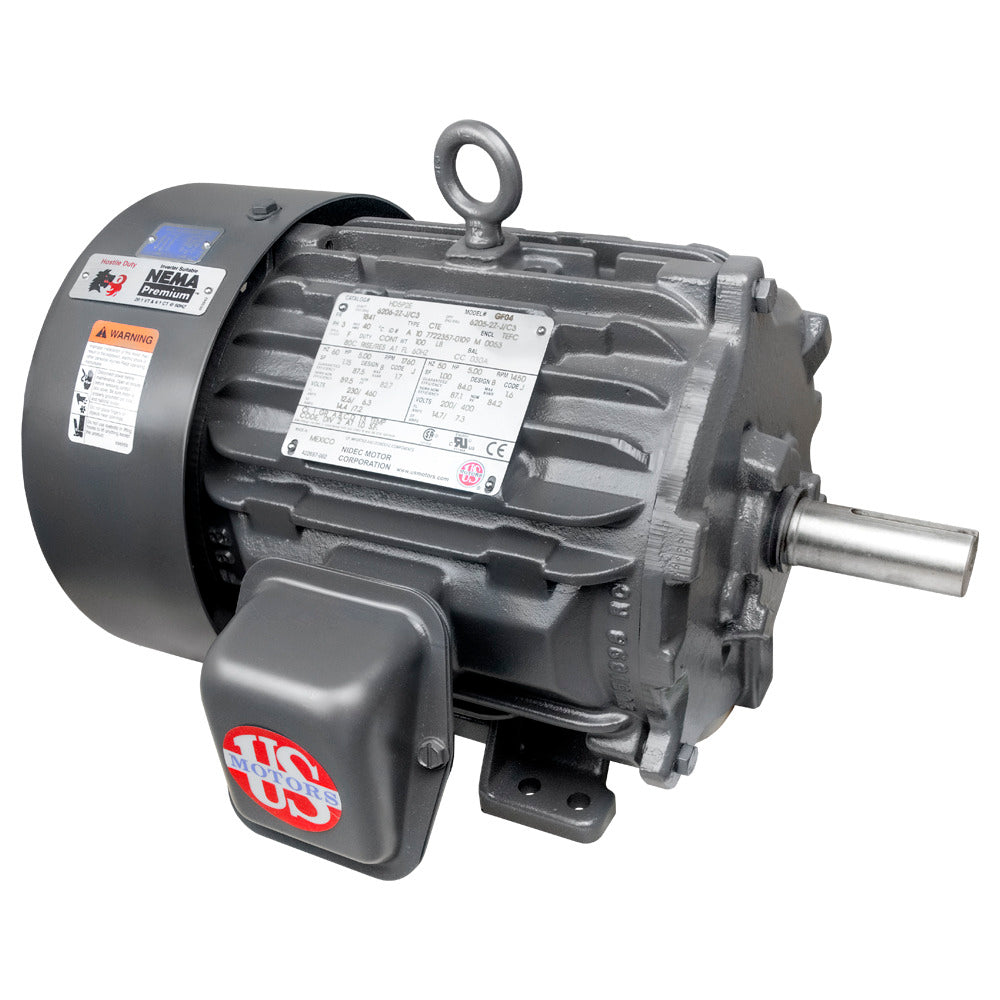

HD32P3E US Motors / Nidec HOSTILE DUTY Motor - 1 1/2 HP - 1175 RPM - 230/460 V - TEFC-IP54
HD32P3E US Motors / Nidec HOSTILE DUTY Motor - 1 1/2 HP - 1175 RPM - 230/460 V - TEFC-IP54
Regular price
$570.95 USD
Regular price
Sale price
$570.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HD32P3E is a new-in-box HOSTILE DUTY Motor from US Motors / Nidec. Designed for harsh industrial service including pulp and paper, sawmills, mines, foundries, chemical plants, and waste-management equipment.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1200 RPM |
| Rated RPM | 1175 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 4.5/2.2 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 87.5 % |
| Speed Count | 1 |
| Frame | 182T |
| Enclosure | TEFC-IP54 |
| Mounting | Rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Cast-iron frame |
| C Dimension | 16.3 in |
| Length | 16.3 in |
| Ship Weight | 90 lb |
| Country of Origin | MEX |
