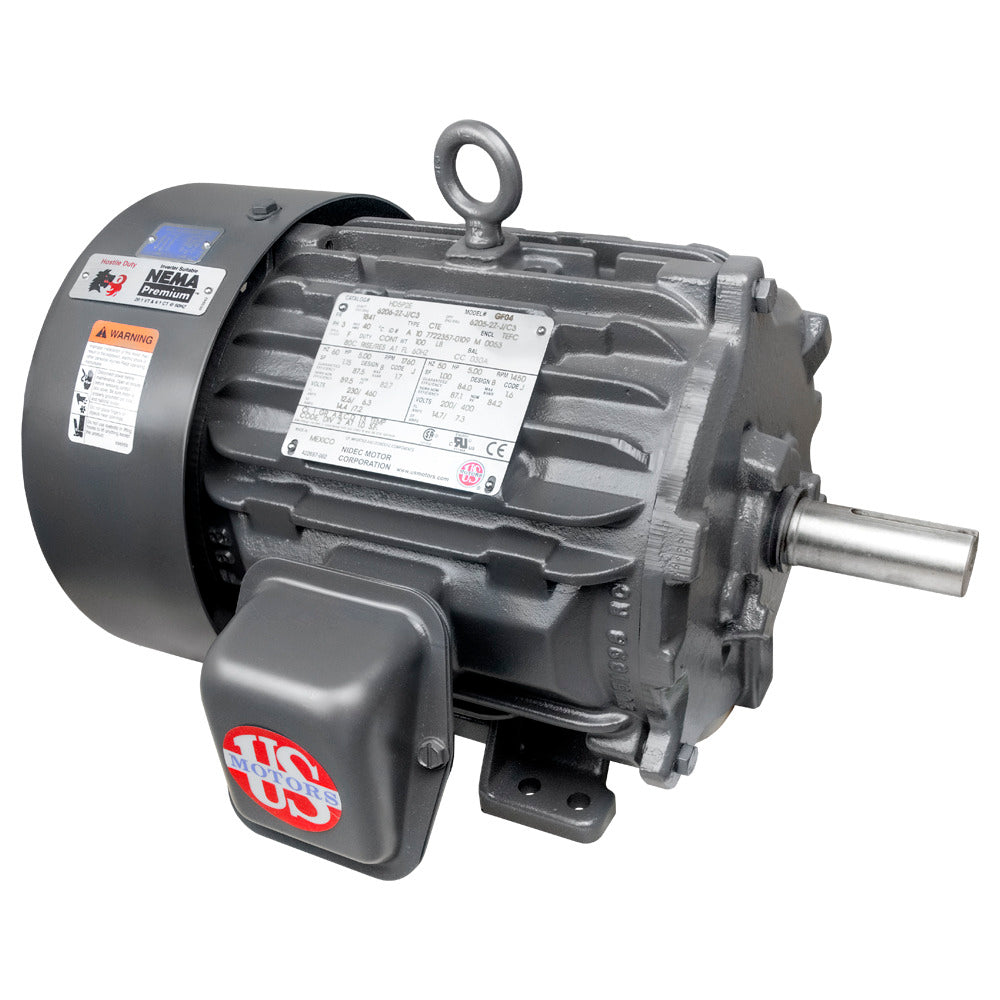

HD32P2E US Motors / Nidec HOSTILE DUTY Motor - 1 1/2 HP - 1760 RPM - 208-230/460 V - TEFC
HD32P2E US Motors / Nidec HOSTILE DUTY Motor - 1 1/2 HP - 1760 RPM - 208-230/460 V - TEFC
Regular price
$423.95 USD
Regular price
Sale price
$423.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HD32P2E is a new-in-box HOSTILE DUTY Motor from US Motors / Nidec. Designed for harsh industrial and process-plant applications.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1760 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 4.5-4.3/2.2 A |
| Service Factor | 1.25 |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Hazardous Location Rating | Self-certified Class I, Division 2, Groups A-D |
| Speed Count | 1 |
| Frame | 145T |
| Enclosure | TEFC |
| Mounting | Horizontal footed, F1 |
| Shaft Details | Manufacturer shaft code T |
| Rotation | Reversible |
| Bearings | DE 6205; ODE 6203 |
| Material | Cast Iron |
| C Dimension | 13.5 in |
| Length | 42 in |
| Width | 42 in |
| Height | 17 in |
| Ship Weight | 60 lb |
| Country of Origin | MEX |
