• HD2P2E US Motors / Nidec HOSTILE DUTY Motor - 2 HP - 1750 RPM - 208-230/460 V - TEFC
1 2

US Motors / Nidec

HD2P2E US Motors / Nidec HOSTILE DUTY Motor - 2 HP - 1750 RPM - 208-230/460 V - TEFC

HD2P2E US Motors / Nidec HOSTILE DUTY Motor - 2 HP - 1750 RPM - 208-230/460 V - TEFC

$466.95 USD
$466.95 USD
Sale Sold out
Shipping calculated at checkout.

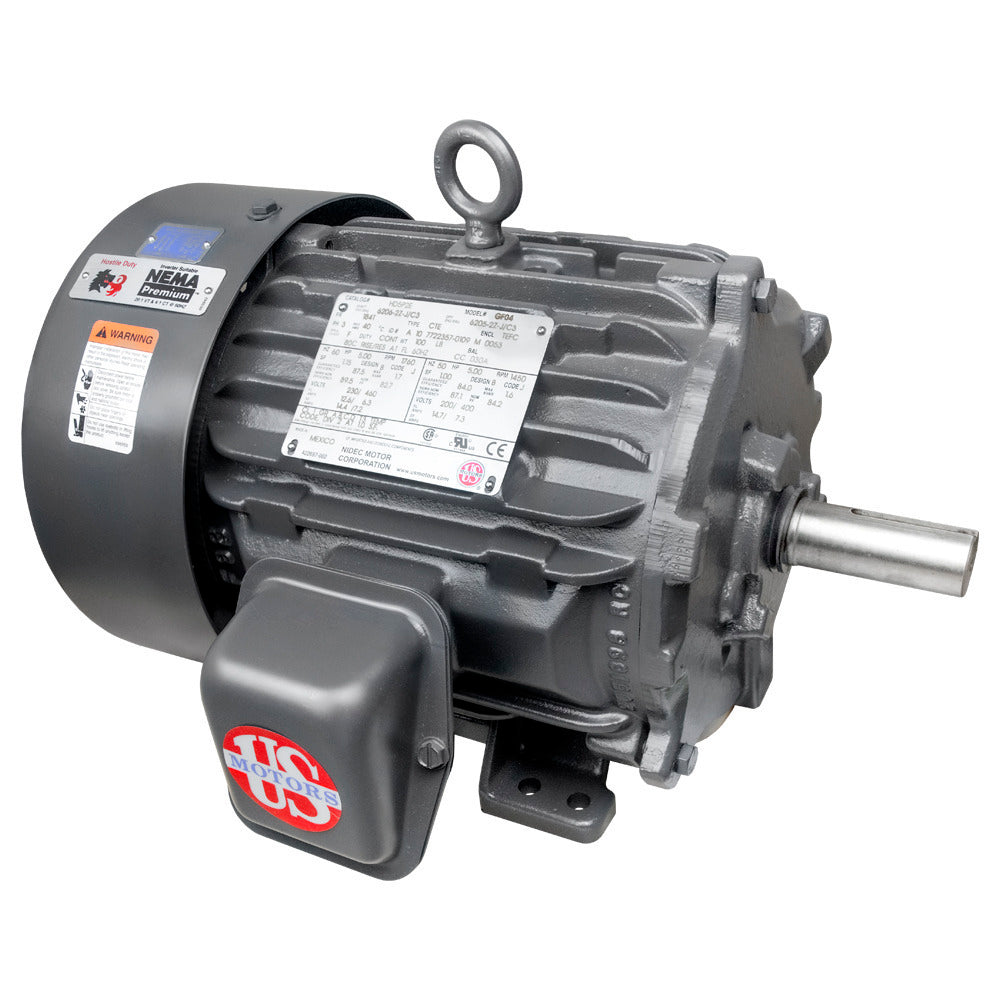

HD2P2E is a new-in-box HOSTILE DUTY Motor from US Motors / Nidec. Designed for harsh industrial service and qualifying Class I, Division 2 hazardous locations.

Specifications

Horsepower 2 HP
Nominal RPM 1800 RPM
Rated RPM 1750 RPM
Voltage 208-230/460 V
Phase Three Phase
Frequency 60/50 Hz
Electrical Type Three Phase
Full-Load Amps 6.0-5.6/2.8 A
Service Factor 1.25
Overload Protection Not available from manufacturer
Duty Rating Not available from manufacturer
Ambient Rating 40 °C
Insulation Class F
Efficiency 86.5 %
Hazardous Location Rating Self-certified Class I, Division 2, Groups A-D
Speed Count 1
Frame 145T
Enclosure TEFC
Mounting Horizontal footed, F1
Shaft Details Manufacturer shaft code T
Rotation Reversible
Bearings DE 6205; ODE 6203
Material Cast Iron
C Dimension 13.5 in
Length 19 in
Width 14 in
Height 13 in
Ship Weight 60 lb
Country of Origin MEX
