US Motors / Nidec

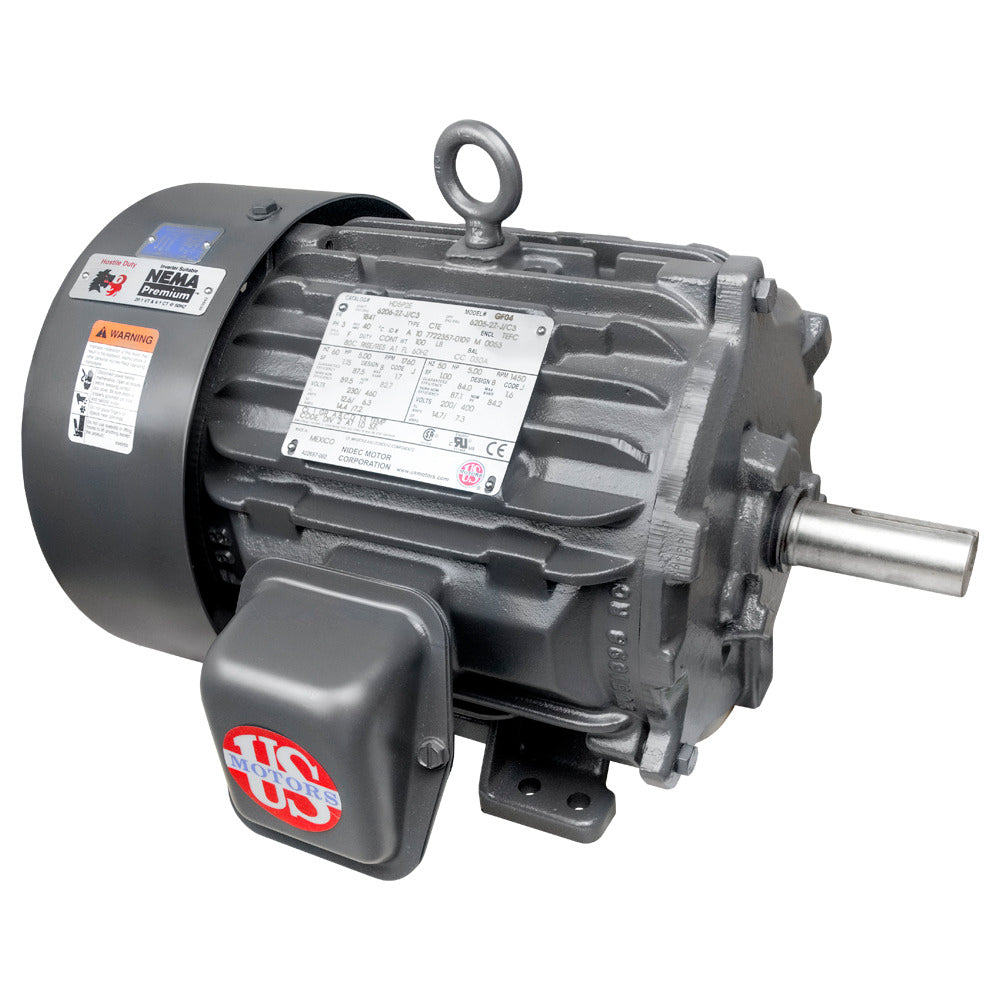

HD1P3E US Motors / Nidec HOSTILE DUTY Motor - 1 HP - 1165 RPM - 230/460 V - TEFC-IP54
HD1P3E US Motors / Nidec HOSTILE DUTY Motor - 1 HP - 1165 RPM - 230/460 V - TEFC-IP54
Regular price
$506.95 USD
Regular price
Sale price
$506.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HD1P3E is a new-in-box HOSTILE DUTY Motor from US Motors / Nidec. Designed for harsh industrial service including pulp and paper, sawmills, mines, foundries, chemical plants, and waste-management equipment.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1200 RPM |
| Rated RPM | 1165 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 3.7/1.8 A |
| Service Factor | 1.25 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 82.5 % |
| Speed Count | 1 |
| Frame | 145T |
| Enclosure | TEFC-IP54 |
| Mounting | Rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings |
| Material | Rolled-steel frame |
| C Dimension | 13.5 in |
| Length | 13.5 in |
| Ship Weight | 70 lb |
| Country of Origin | MEX |
