US Motors / Nidec

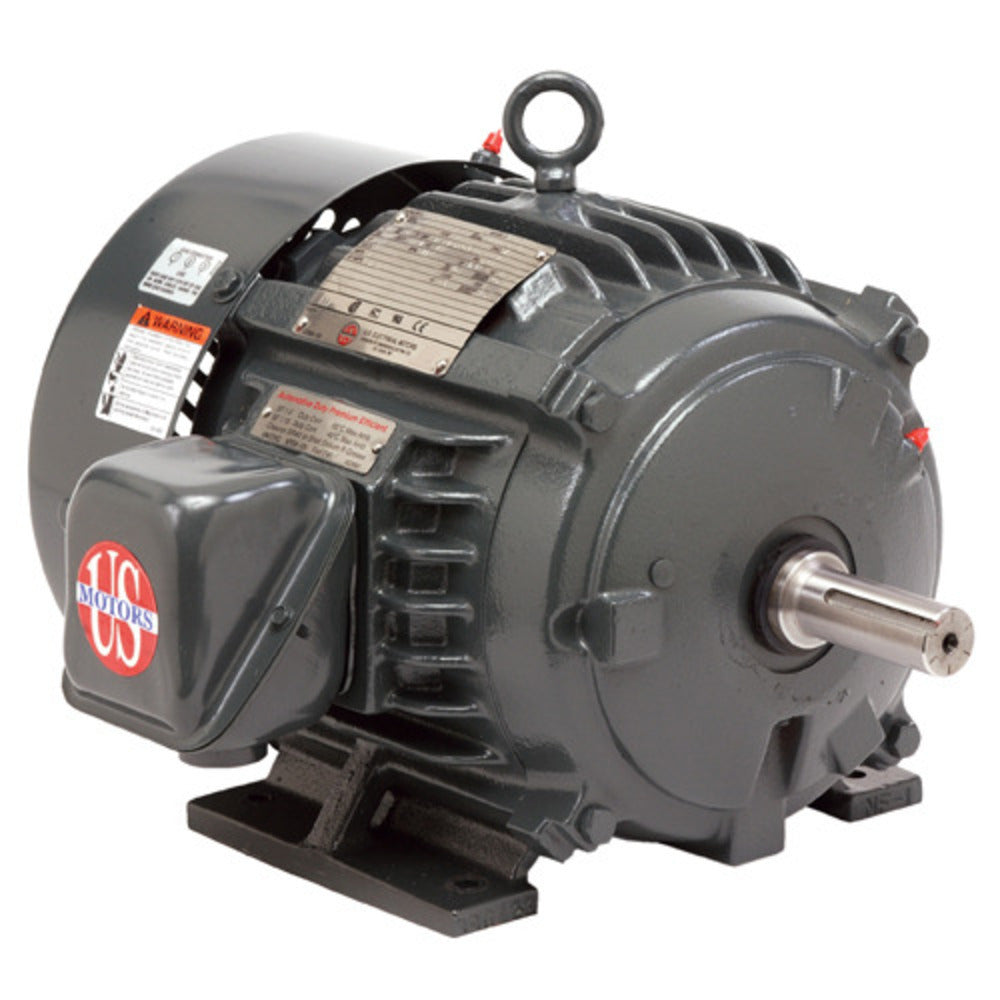

HD10P2EC US Motors / Nidec HOSTILE DUTY General Purpose Motor - 10 HP - 1770 RPM - 230/460 V - TEFC-IP54
HD10P2EC US Motors / Nidec HOSTILE DUTY General Purpose Motor - 10 HP - 1770 RPM - 230/460 V - TEFC-IP54
Regular price
$1,027.95 USD
Regular price
Sale price
$1,027.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
HD10P2EC is a new-in-box HOSTILE DUTY General Purpose Motor from US Motors / Nidec. Designed for harsh industrial service including pulp and paper, sawmills, mines, foundries, chemical plants, and waste-management equipment.
Specifications
| Horsepower | 10 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1770 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 25.7/12.8 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 91.7 % |
| Speed Count | 1 |
| Frame | 215TC |
| Enclosure | TEFC-IP54 |
| Mounting | C-face with rigid base, footed (F1) |
| Rotation | Reversible |
| Bearings | 6206-2Z-J/C3 / 6208-2Z-J/C3 |
| Material | Cast-iron frame |
| Ship Weight | 180 lb |
| Country of Origin | MEX |
